524

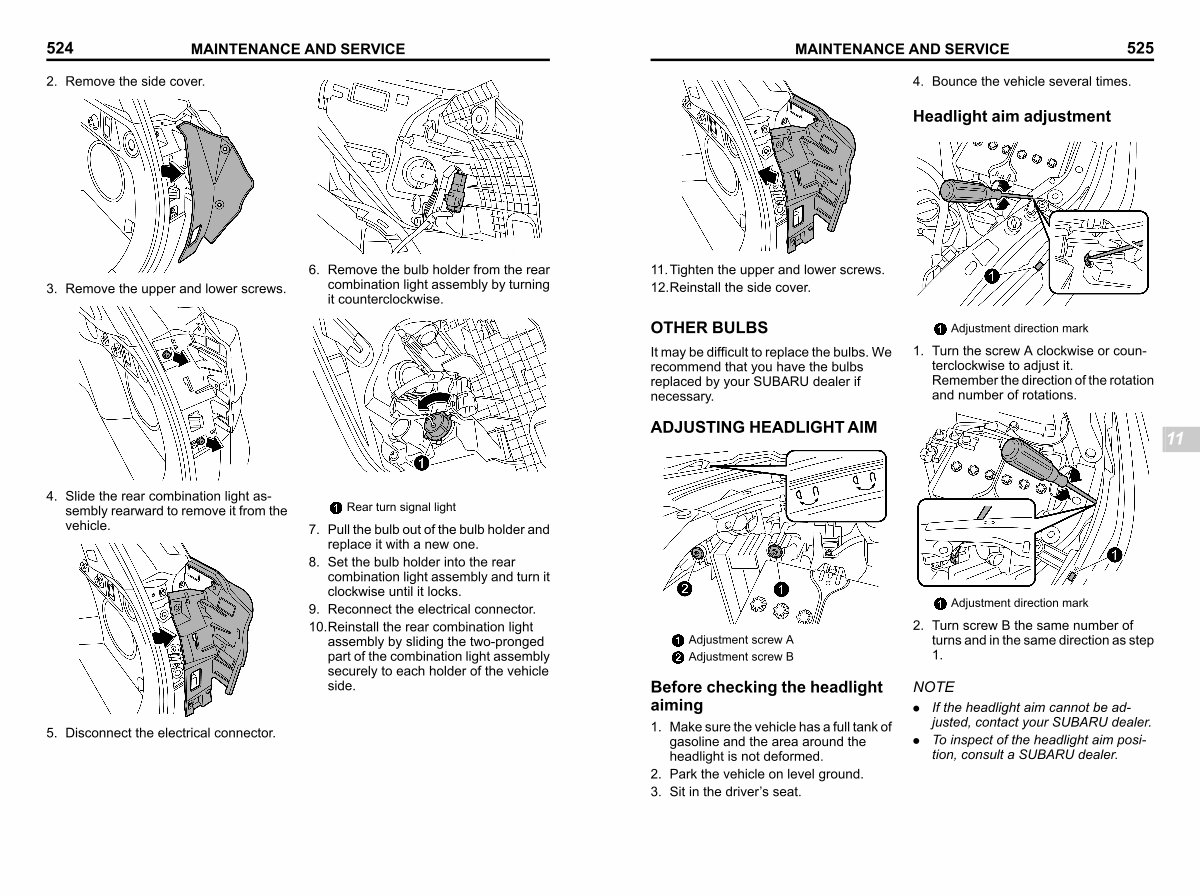

MAINTENANCE AND SERVICE
2. Remove the side cover.
S _ B02400-W
3. Remove the upper and lower screws.
S _ B02403-W
6. Remove the bulb holder from the rear combination light assembly by turning it counterclockwise.
S _ B02401-W
4. Slide the rear combination light assembly rearward to remove it from the vehicle.
Rear turn signal light
S _ B02493-W
7. Pull the bulb out of the bulb holder and replace it with a new one.
8. Set the bulb holder into the rear combination light assembly and turn it clockwise until it locks.
9. Reconnect the electrical connector.
10. Reinstall the rear combination light assembly by sliding the two-pronged part of the combination light assembly securely to each holder of the vehicle side.
S _ B02402-W
5. Disconnect the electrical connector.
