526
MAINTENANCE AND SERVICE

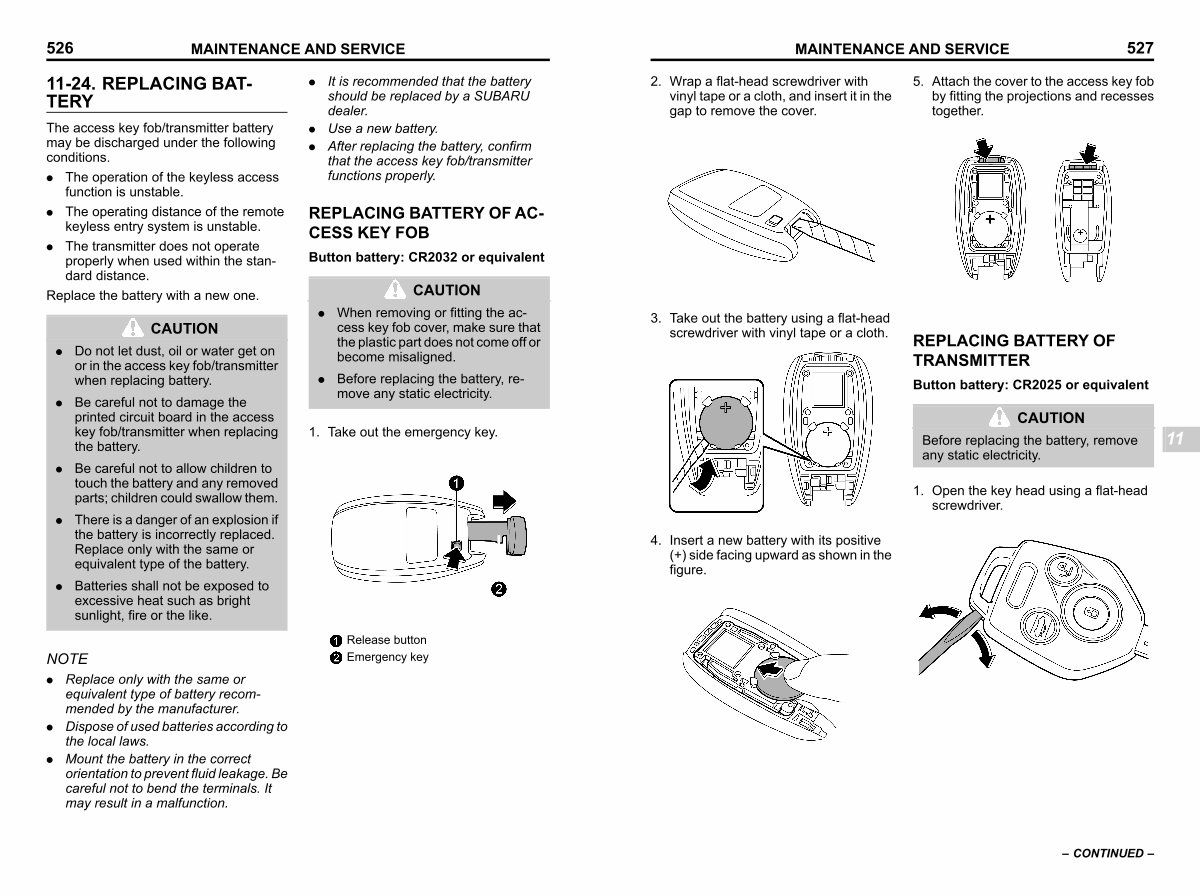

11-24. REPLACING BAT- TERY s11bk
The access key fob / transmitter battery may be discharged under the following conditions.
. The operation of the keyless access function is unstable.
. The operating distance of the remote keyless entry system is unstable.
. The transmitter does not operate properly when used within the standard distance.
Replace the battery with a new one.
CAUTION
. Do not let dust, oil or water get on or in the access key fob / transmitter when replacing battery.
. Be careful not to damage the printed circuit board in the access key fob / transmitter when replacing the battery.
. Be careful not to allow children to touch the battery and any removed parts; children could swallow them.
. There is a danger of an explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type of the battery.
. Batteries shall not be exposed to excessive heat such as bright sunlight, fire or the like.
NOTE
. Replace only with the same or equivalent type of battery recommended by the manufacturer.
. Dispose of used batteries according to the local laws.
. Mount the battery in the correct orientation to prevent fluid leakage. Be careful not to bend the terminals. It may result in a malfunction.
. It is recommended that the battery should be replaced by a SUBARU dealer.
. Use a new battery.
. After replacing the battery, confirm that the access key fob / transmitter functions properly.
REPLACING BATTERY OF AC- CESS KEY FOB s11bk01
Button battery: CR2032 or equivalent
CAUTION
. When removing or fitting the access key fob cover, make sure that the plastic part does not come off or become misaligned.
. Before replacing the battery, remove any static electricity.
1. Take out the emergency key.
Release button Emergency key
S _ 204470-MW
