MAINTENANCE AND SERVICE 517

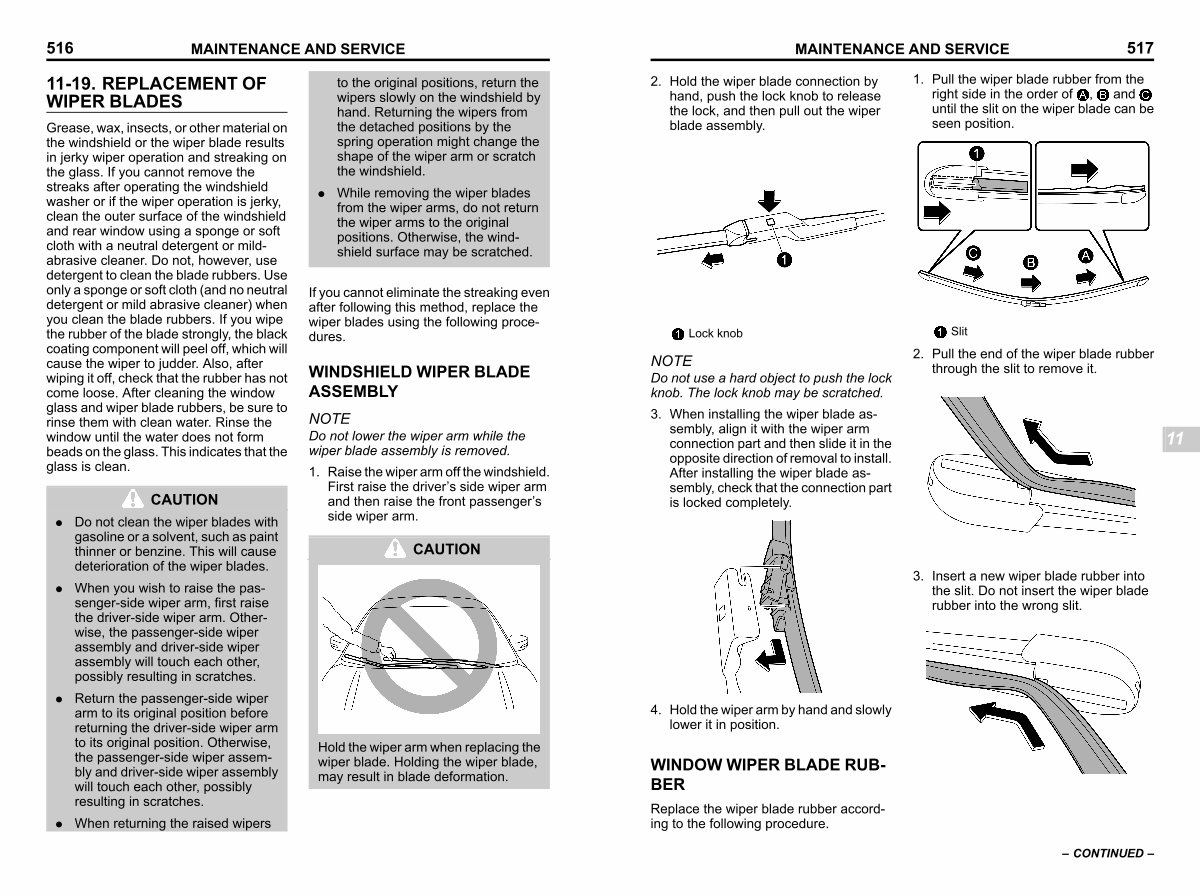

2. Hold the wiper blade connection by hand, push the lock knob to release the lock, and then pull out the wiper blade assembly.
1. Pull the wiper blade rubber from the right side in the order of, and until the slit on the wiper blade can be seen position.
Lock knob
S _ B02485-W
NOTE
Do not use a hard object to push the lock knob. The lock knob may be scratched.
3. When installing the wiper blade assembly, align it with the wiper arm connection part and then slide it in the opposite direction of removal to install. After installing the wiper blade assembly, check that the connection part is locked completely.
Slit
S _ B02486-W
2. Pull the end of the wiper blade rubber through the slit to remove it.
11
S _ B02384-W
3. Insert a new wiper blade rubber into the slit. Do not insert the wiper blade rubber into the wrong slit.
S _ B02382-W
4. Hold the wiper arm by hand and slowly lower it in position.
WINDOW WIPER BLADE RUB- BER s11az05
Replace the wiper blade rubber according to the following procedure.
S _ B02385-W
– CONTINUED –
