516
MAINTENANCE AND SERVICE

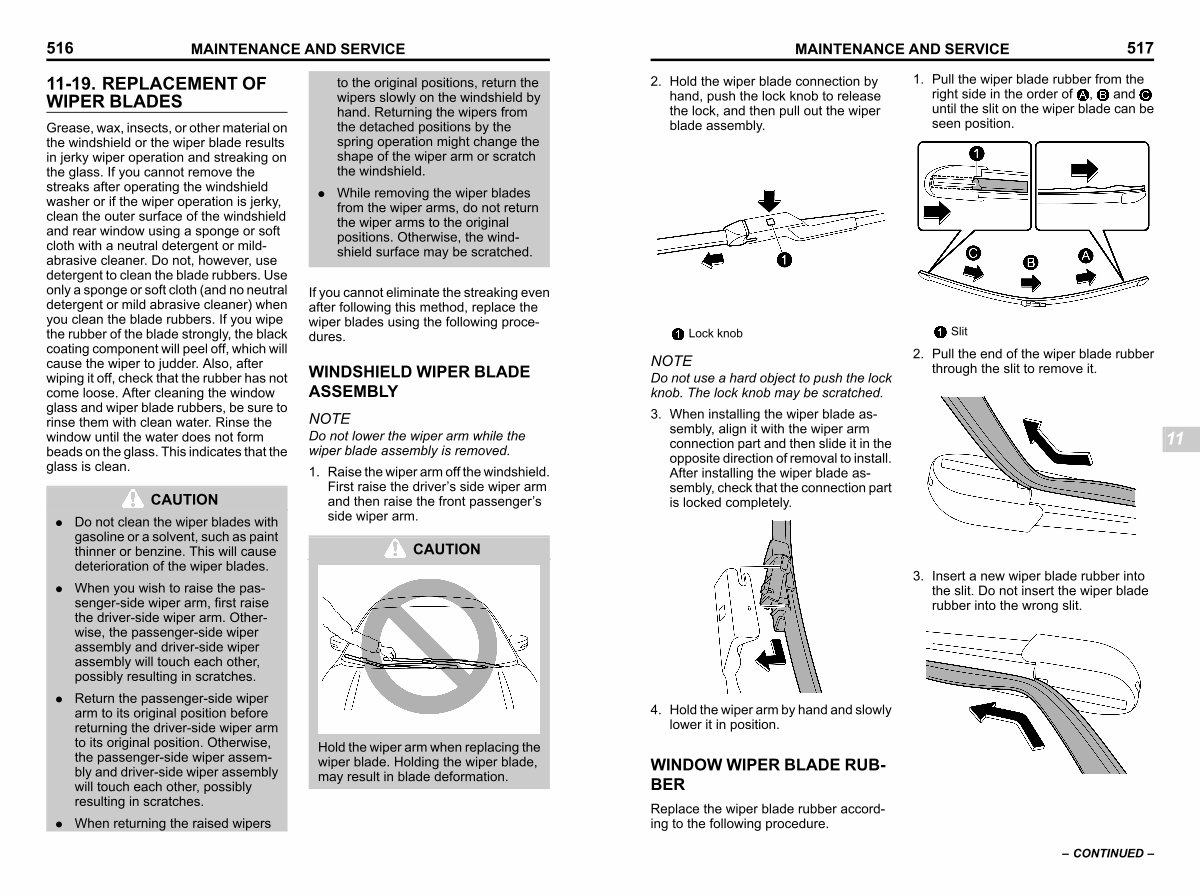

11-19. REPLACEMENT OF WIPER BLADES s11az
Grease, wax, insects, or other material on the windshield or the wiper blade results in jerky wiper operation and streaking on the glass. If you cannot remove the streaks after operating the windshield washer or if the wiper operation is jerky, clean the outer surface of the windshield and rear window using a sponge or soft cloth with a neutral detergent or mildabrasive cleaner. Do not, however, use detergent to clean the blade rubbers. Use only a sponge or soft cloth( and no neutral detergent or mild abrasive cleaner) when you clean the blade rubbers. If you wipe the rubber of the blade strongly, the black coating component will peel off, which will cause the wiper to judder. Also, after wiping it off, check that the rubber has not come loose. After cleaning the window glass and wiper blade rubbers, be sure to rinse them with clean water. Rinse the window until the water does not form beads on the glass. This indicates that the glass is clean.
CAUTION
. Do not clean the wiper blades with gasoline or a solvent, such as paint thinner or benzine. This will cause deterioration of the wiper blades.
. When you wish to raise the passenger-side wiper arm, first raise the driver-side wiper arm. Otherwise, the passenger-side wiper assembly and driver-side wiper assembly will touch each other, possibly resulting in scratches.
. Return the passenger-side wiper arm to its original position before returning the driver-side wiper arm to its original position. Otherwise, the passenger-side wiper assembly and driver-side wiper assembly will touch each other, possibly resulting in scratches.
. When returning the raised wipers
to the original positions, return the wipers slowly on the windshield by hand. Returning the wipers from the detached positions by the spring operation might change the shape of the wiper arm or scratch the windshield.
. While removing the wiper blades from the wiper arms, do not return the wiper arms to the original positions. Otherwise, the windshield surface may be scratched.
If you cannot eliminate the streaking even after following this method, replace the wiper blades using the following procedures.
WINDSHIELD WIPER BLADE ASSEMBLY s11az01
NOTE
Do not lower the wiper arm while the wiper blade assembly is removed.
1. Raise the wiper arm off the windshield. First raise the driver’ s side wiper arm and then raise the front passenger’ s side wiper arm.
CAUTION
S _ B02380-MW
Hold the wiper arm when replacing the wiper blade. Holding the wiper blade, may result in blade deformation.
