518
MAINTENANCE AND SERVICE

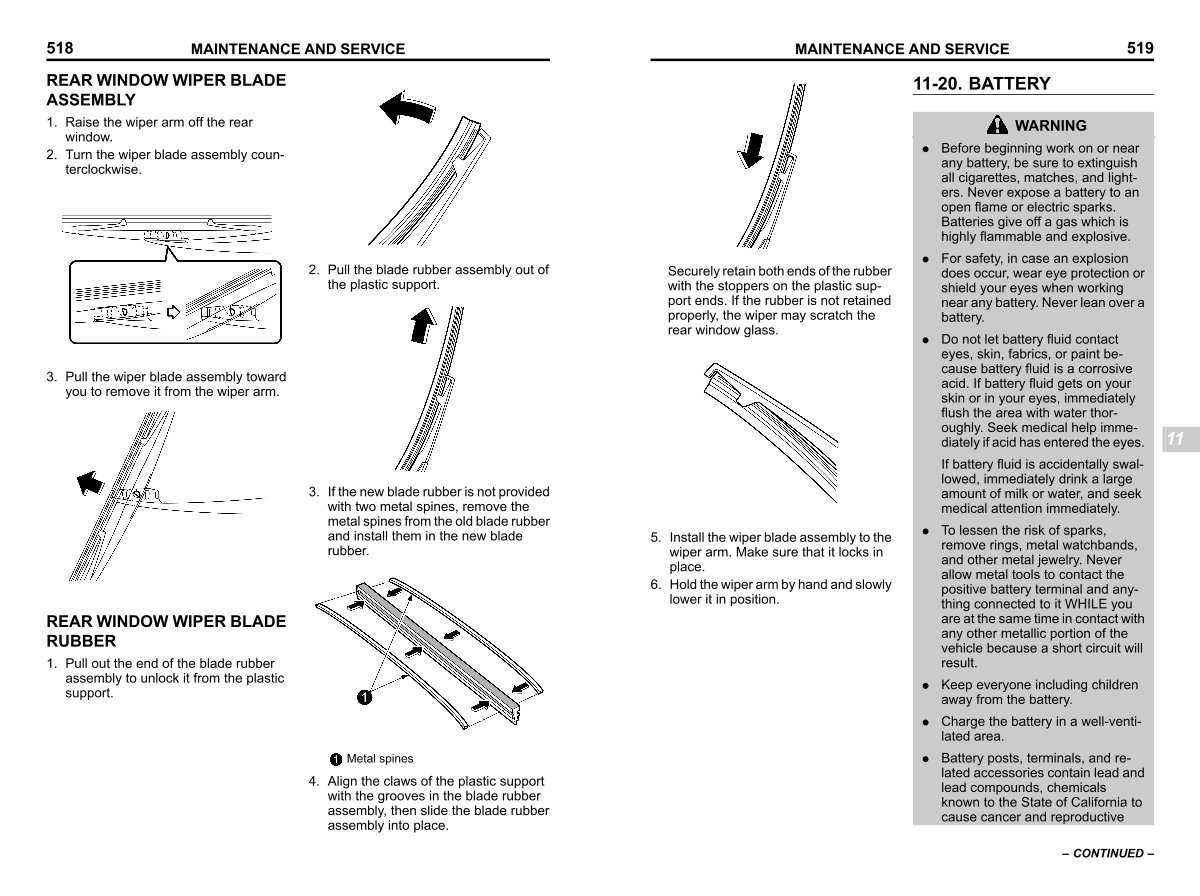

REAR WINDOW WIPER BLADE ASSEMBLY s11az03
1. Raise the wiper arm off the rear window.
2. Turn the wiper blade assembly counterclockwise.
S _ B02388-W
2. Pull the blade rubber assembly out of the plastic support.
S _ B02386-W
3. Pull the wiper blade assembly toward you to remove it from the wiper arm.
S _ B02389-W
3. If the new blade rubber is not provided with two metal spines, remove the metal spines from the old blade rubber and install them in the new blade rubber.
S _ B02387-W
REAR WINDOW WIPER BLADE RUBBER s11az04
1. Pull out the end of the blade rubber assembly to unlock it from the plastic support.
Metal spines
S _ B02487-W
4. Align the claws of the plastic support with the grooves in the blade rubber assembly, then slide the blade rubber assembly into place.
