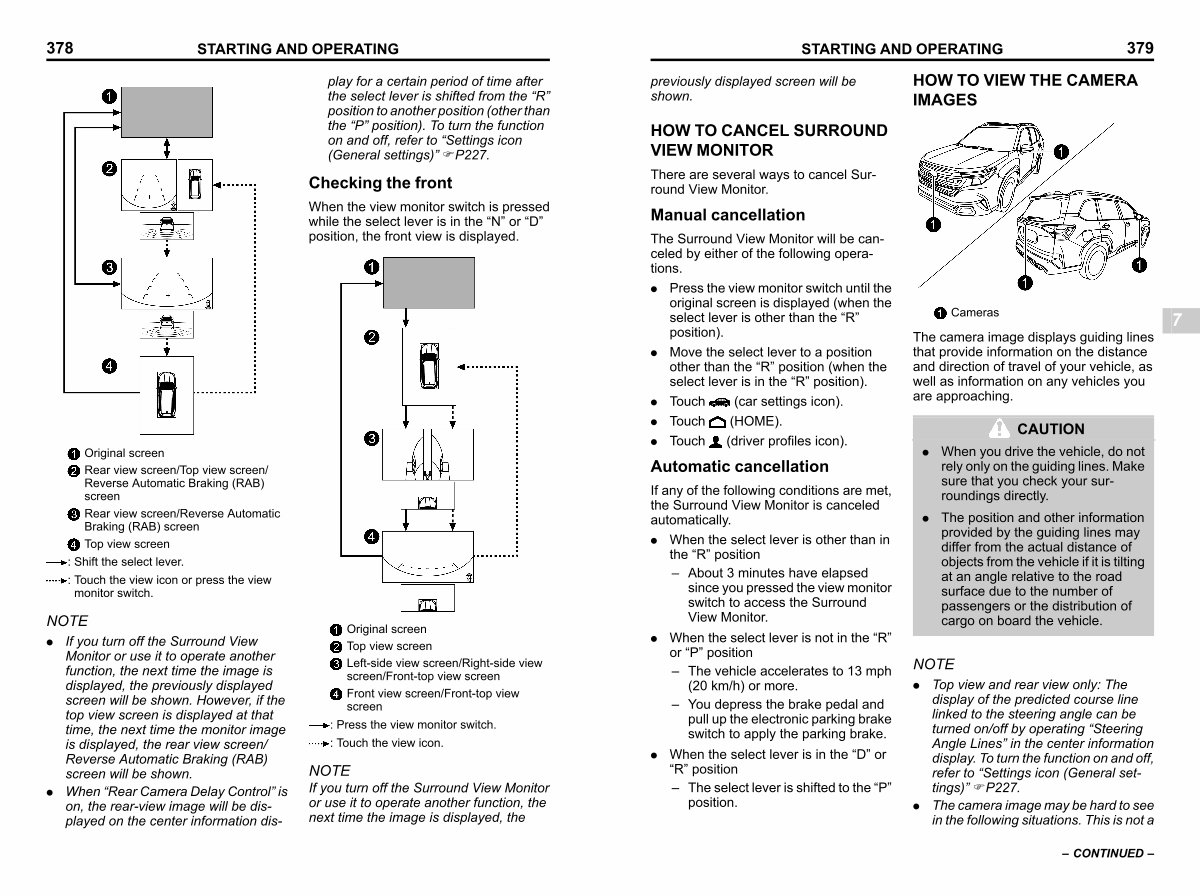

STARTING AND OPERATING 379
previously displayed screen will be shown.
HOW TO CANCEL SURROUND VIEW MONITOR s07bu02
There are several ways to cancel Surround View Monitor.
Manual cancellation s07bu0201
The Surround View Monitor will be canceled by either of the following operations.
. Press the view monitor switch until the original screen is displayed( when the select lever is other than the“ R” position).
. Move the select lever to a position other than the“ R” position( when the select lever is in the“ R” position).
. Touch( car settings icon).. Touch( HOME).. Touch( driver profiles icon).
Automatic cancellation s07bu0202
If any of the following conditions are met, the Surround View Monitor is canceled automatically.
. When the select lever is other than in the“ R” position
– About 3 minutes have elapsed since you pressed the view monitor switch to access the Surround View Monitor.
. When the select lever is not in the“ R” or“ P” position
– The vehicle accelerates to 13 mph( 20 km / h) or more.
– You depress the brake pedal and pull up the electronic parking brake switch to apply the parking brake.
. When the select lever is in the“ D” or“ R” position
– The select lever is shifted to the“ P” position.
HOW TO VIEW THE CAMERA IMAGES s07bu03
Cameras
S _ 703309-W
The camera image displays guiding lines that provide information on the distance and direction of travel of your vehicle, as well as information on any vehicles you are approaching.
CAUTION
. When you drive the vehicle, do not rely only on the guiding lines. Make sure that you check your surroundings directly.
. The position and other information provided by the guiding lines may differ from the actual distance of objects from the vehicle if it is tilting at an angle relative to the road surface due to the number of passengers or the distribution of cargo on board the vehicle.
NOTE
. Top view and rear view only: The display of the predicted course line linked to the steering angle can be turned on / off by operating“ Steering Angle Lines” in the center information display. To turn the function on and off, refer to“ Settings icon( General settings)” FP227.
. The camera image may be hard to see in the following situations. This is not a
7
– CONTINUED –
