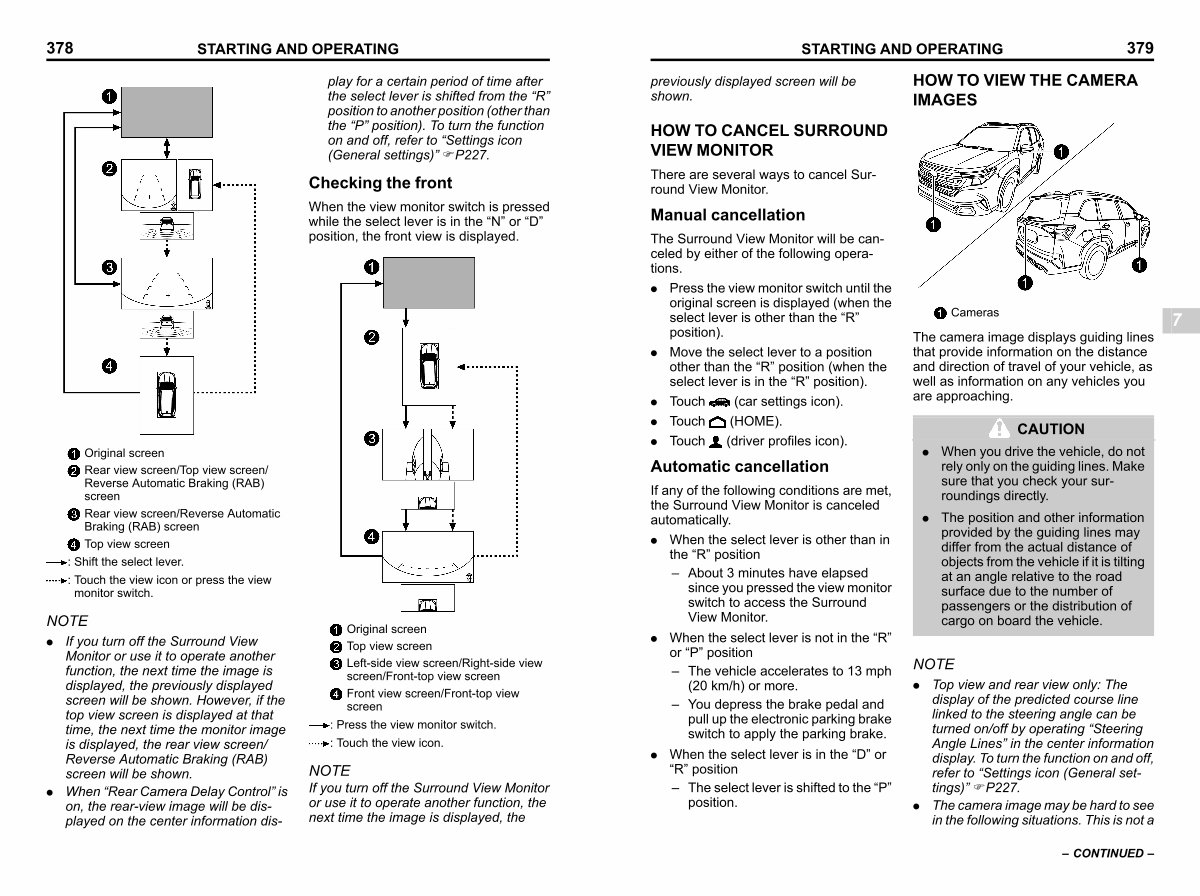

378 STARTING AND OPERATING
NOTE
. If you turn off the Surround View Monitor or use it to operate another function, the next time the image is displayed, the previously displayed screen will be shown. However, if the top view screen is displayed at that time, the next time the monitor image is displayed, the rear view screen / Reverse Automatic Braking( RAB) screen will be shown.
. When“ Rear Camera Delay Control” is on, the rear-view image will be displayed on the center information display for a certain period of time after the select lever is shifted from the“ R” position to another position( other than the“ P” position). To turn the function on and off, refer to“ Settings icon( General settings)” FP227.
Checking the front s07bu0103
When the view monitor switch is pressed while the select lever is in the“ N” or“ D” position, the front view is displayed.
S _ 703273-W
Original screen
Rear view screen / Top view screen / Reverse Automatic Braking( RAB) screen
Rear view screen / Reverse Automatic Braking( RAB) screen
Top view screen: Shift the select lever.
: Touch the view icon or press the view monitor switch.
S _ 703274-W
Original screen Top view screen
Left-side view screen / Right-side view screen / Front-top view screen
Front view screen / Front-top view screen
: Press the view monitor switch.: Touch the view icon.
NOTE
If you turn off the Surround View Monitor or use it to operate another function, the next time the image is displayed, the
