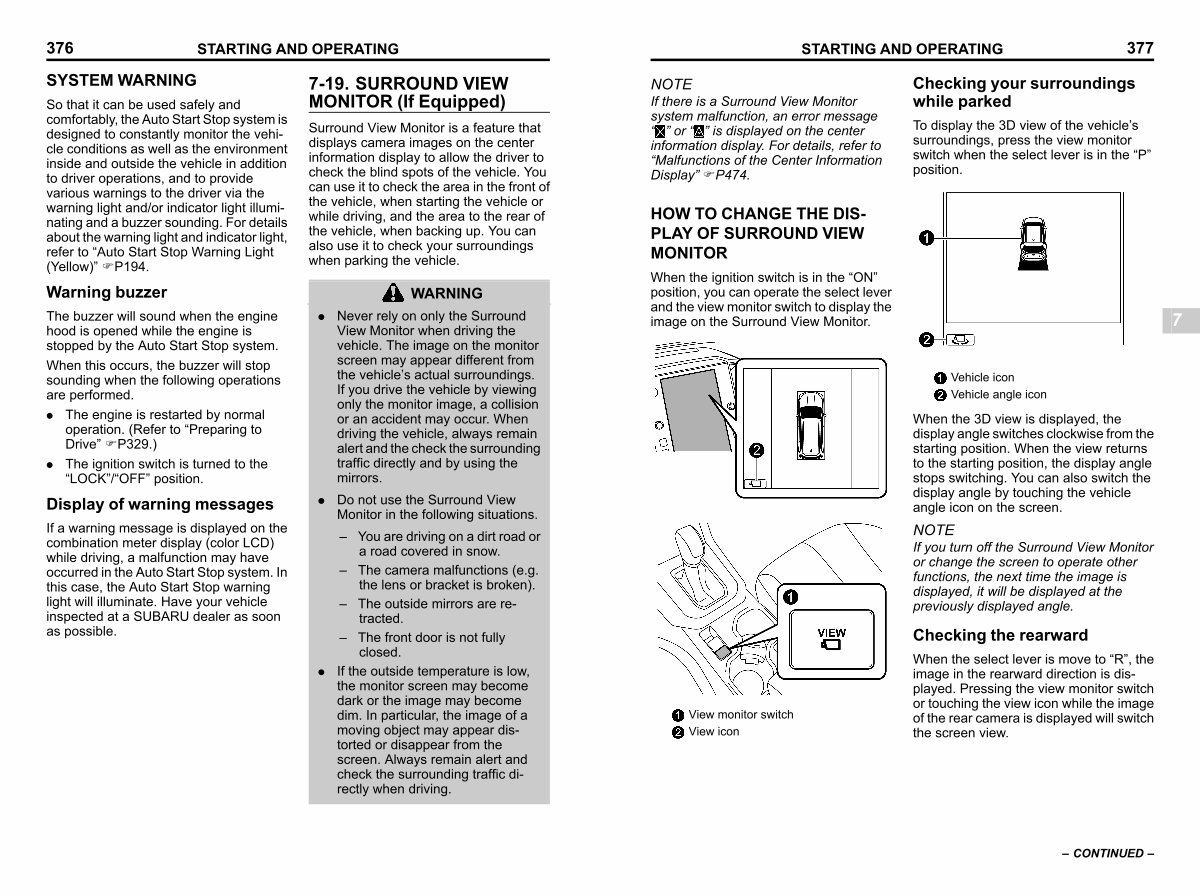

STARTING AND OPERATING 377
NOTE
If there is a Surround View Monitor system malfunction, an error message“” or“” is displayed on the center information display. For details, refer to“ Malfunctions of the Center Information Display” FP474.
Checking your surroundings while parked s07bu0101
To display the 3D view of the vehicle’ s surroundings, press the view monitor switch when the select lever is in the“ P” position.
HOW TO CHANGE THE DIS- PLAY OF SURROUND VIEW MONITOR s07bu01
When the ignition switch is in the“ ON” position, you can operate the select lever and the view monitor switch to display the image on the Surround View Monitor.
7
View monitor switch View icon
S _ 703271-W
Vehicle icon Vehicle angle icon
S _ 703272-W
When the 3D view is displayed, the display angle switches clockwise from the starting position. When the view returns to the starting position, the display angle stops switching. You can also switch the display angle by touching the vehicle angle icon on the screen.
NOTE
If you turn off the Surround View Monitor or change the screen to operate other functions, the next time the image is displayed, it will be displayed at the previously displayed angle.
Checking the rearward s07bu0102
When the select lever is move to“ R”, the image in the rearward direction is displayed. Pressing the view monitor switch or touching the view icon while the image of the rear camera is displayed will switch the screen view.
– CONTINUED –
