208 INSTRUMENTS AND CONTROLS
. Radio. Media. Phone. Apps. Add to Shortcut Lower main screen:
For details about the setting items, refer to“ Shortcut Icons” FP209.
If this screen changes to the climate control screen, refer to“ Dual 7.0-Inch Display Models” FP278.
HOME BUTTON
Press menu.
( HOME) to display the top s03bw01
STATUS BAR s03bw02
The driver profiles icon, outside temperature and clock are shown on the display.
NOTE
. The outside temperature indicator shows the temperature around the sensor. However, the temperature may not be indicated correctly or the update may be delayed in the following conditions.
– While parking or driving at low
speeds – When the outside temperature
changes suddenly( example: when going in and out of an underground parking area or when passing
through a tunnel) – When starting the engine after
being parked for a certain period of time
. You can set the temperature units to be displayed in Fahrenheit(° F) or Celsius(° C). For details, refer to“ Settings icon( General settings)” FP210.
. The clock can be shown in either 12- hour display or 24-hour display. For details about the setting, refer to“ Setting 12-Hour Display / 24-Hour
Display
” FP236.
. Touch the clock on the status bar to display the clock setting screen. Refer to“ Clock” FP235.

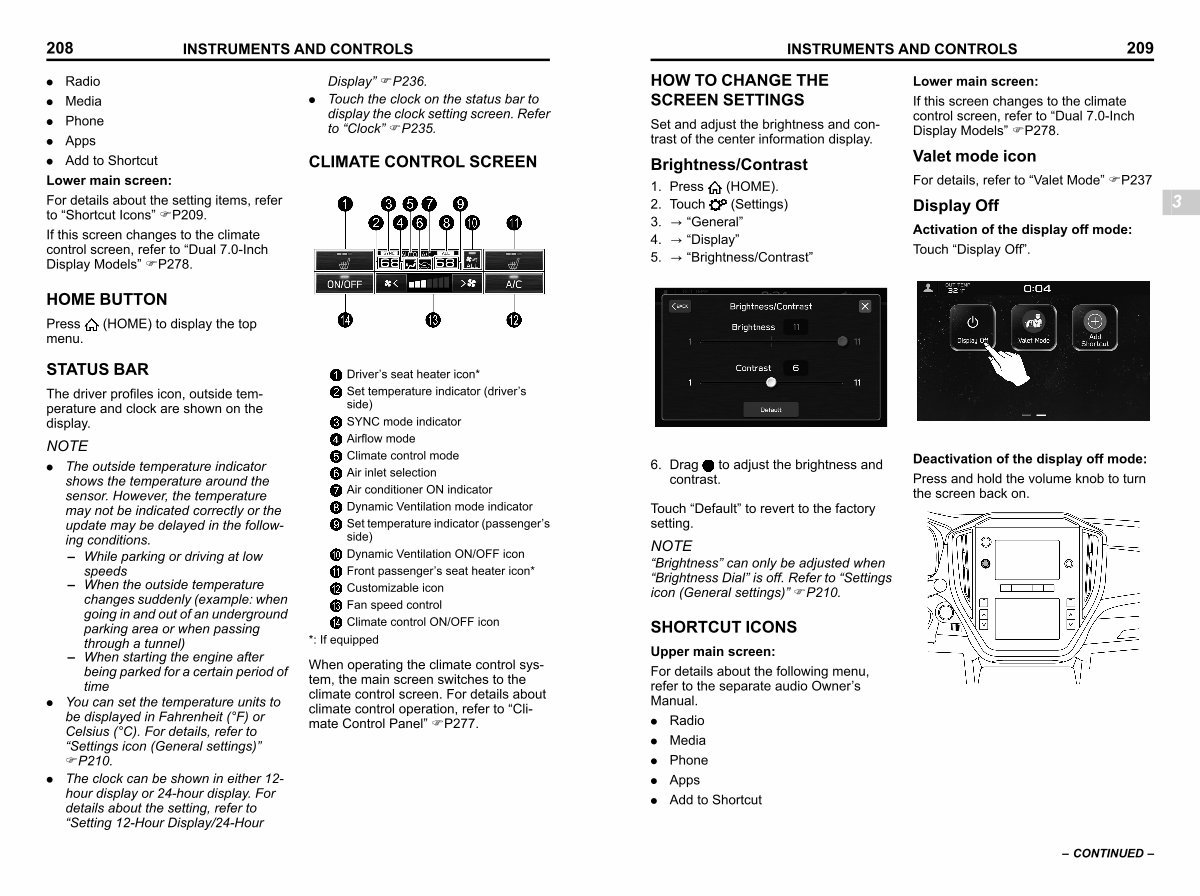

CLIMATE CONTROL SCREEN s03bw03
S _ 307910-W
Driver’ s seat heater icon *
Set temperature indicator( driver’ s side)
SYNC mode indicator Airflow mode Climate control mode Air inlet selection Air conditioner ON indicator Dynamic Ventilation mode indicator
Set temperature indicator( passenger’ s side)
Dynamic Ventilation ON / OFF icon Front passenger’ s seat heater icon * Customizable icon Fan speed control Climate control ON / OFF icon *: If equipped
When operating the climate control system, the main screen switches to the climate control screen. For details about climate control operation, refer to“ Climate Control Panel” FP277.
