INSTRUMENTS AND CONTROLS 207
NOTE
Swipe operations may not be performed smoothly in high altitudes.
ON / OFF setting s03bs0404

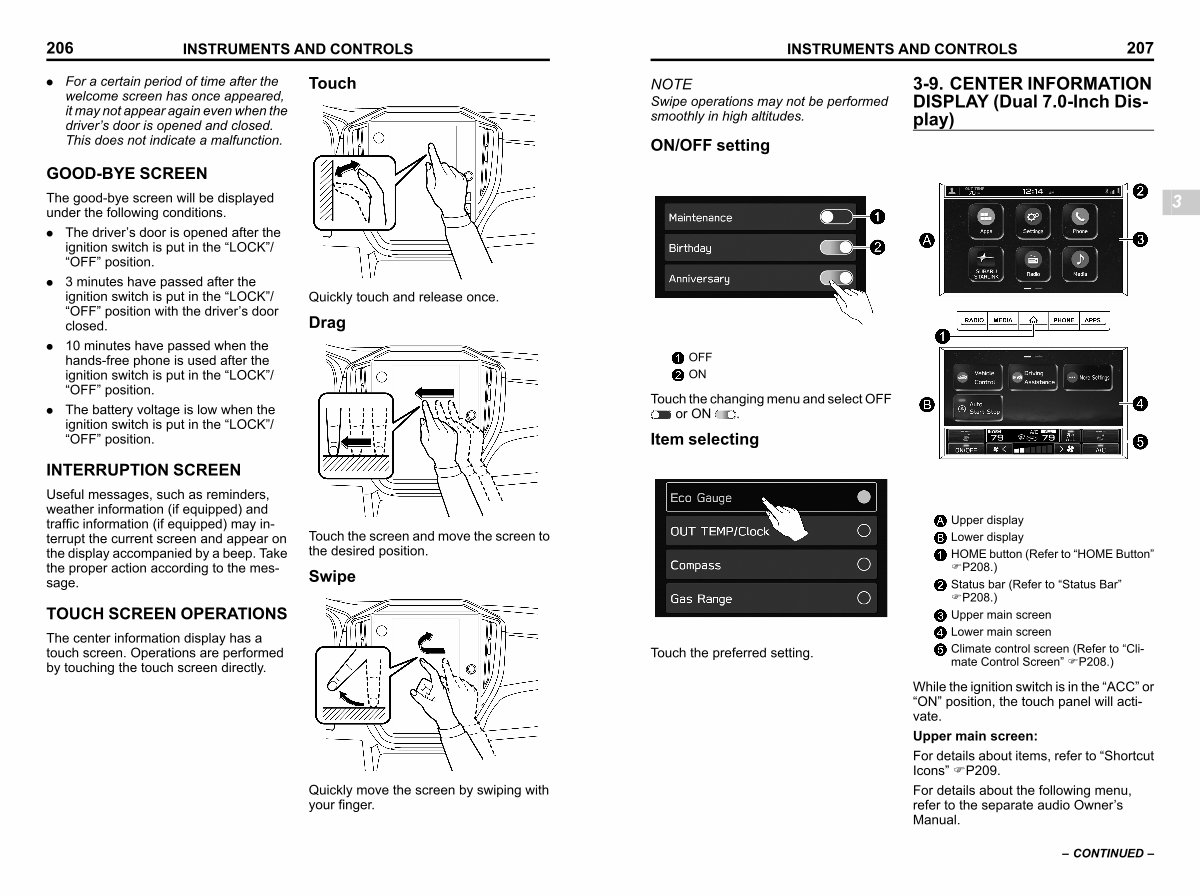

3-9. CENTER INFORMATION DISPLAY( Dual 7.0-Inch Display) s03bw
3
OFF ON
S _ 307908-W
Touch the changing menu and select OFF or ON.
Item selecting s03bs0405
Touch the preferred setting.
S _ 307700-W
S _ 307909-W
Upper display Lower display
HOME button( Refer to“ HOME Button” FP208.)
Status bar( Refer to“ Status Bar” FP208.)
Upper main screen Lower main screen
Climate control screen( Refer to“ Climate Control Screen” FP208.)
While the ignition switch is in the“ ACC” or“ ON” position, the touch panel will activate.
Upper main screen:
For details about items, refer to“ Shortcut Icons” FP209.
For details about the following menu, refer to the separate audio Owner’ s Manual.
– CONTINUED –
