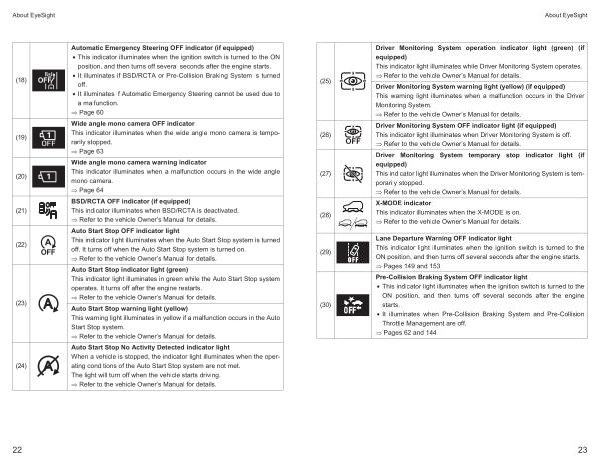

About EyeSight
( 18 )
( 19 )
( 20 )
( 21 )
( 22 )
( 23 )
( 24 )
Automatic Emergency Steering OFF indicator ( if equipped )
• This indicator illuminates when the ignition switch is turned to the ON position , and then turns off several seconds after the engine starts .
• It illuminates if BSD / RCTA or Pre-Collision Braking System is turned off .
• It illuminates if Automatic Emergency Steering cannot be used due to a malfunction .
� Page 60 Wide angle mono camera OFF indicator This indicator illuminates when the wide angle mono camera is temporarily stopped .
� Page 63 Wide angle mono camera warning indicator This indicator illuminates when a malfunction occurs in the wide angle mono camera .
� Page 64 BSD / RCTA OFF indicator ( if equipped ) This indicator illuminates when BSD / RCTA is deactivated . � Refer to the vehicle Owner ’ s Manual for details . Auto Start Stop OFF indicator light This indicator light illuminates when the Auto Start Stop system is turned off . It turns off when the Auto Start Stop system is turned on . � Refer to the vehicle Owner ’ s Manual for details . Auto Start Stop indicator light ( green ) This indicator light illuminates in green while the Auto Start Stop system operates . It turns off after the engine restarts .
� Refer to the vehicle Owner ’ s Manual for details . Auto Start Stop warning light ( yellow ) This warning light illuminates in yellow if a malfunction occurs in the Auto Start Stop system .
� Refer to the vehicle Owner ’ s Manual for details . Auto Start Stop No Activity Detected indicator light When a vehicle is stopped , the indicator light illuminates when the operating conditions of the Auto Start Stop system are not met . The light will turn off when the vehicle starts driving .
� Refer to the vehicle Owner ’ s Manual for details .
22
