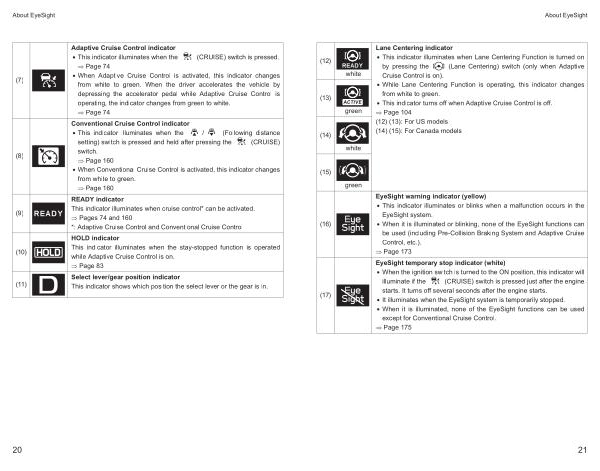

About EyeSight
( 12 )
( 13 )
( 14 ) white
green
white
Lane Centering indicator
• This indicator illuminates when Lane Centering Function is turned on by pressing the ( Lane Centering ) switch ( only when Adaptive Cruise Control is on ).
• While Lane Centering Function is operating , this indicator changes from white to green .
• This indicator turns off when Adaptive Cruise Control is off .
� Page 104 ( 12 ) ( 13 ): For US models ( 14 ) ( 15 ): For Canada models
( 15 )
( 16 )
( 17 ) green
EyeSight warning indicator ( yellow )
• This indicator illuminates or blinks when a malfunction occurs in the EyeSight system .
• When it is illuminated or blinking , none of the EyeSight functions can be used ( including Pre-Collision Braking System and Adaptive Cruise Control , etc .).
� Page 173
EyeSight temporary stop indicator ( white )
• When the ignition switch is turned to the ON position , this indicator will illuminate if the ( CRUISE ) switch is pressed just after the engine starts . It turns off several seconds after the engine starts .
• It illuminates when the EyeSight system is temporarily stopped .
• When it is illuminated , none of the EyeSight functions can be used except for Conventional Cruise Control .
� Page 175
21
