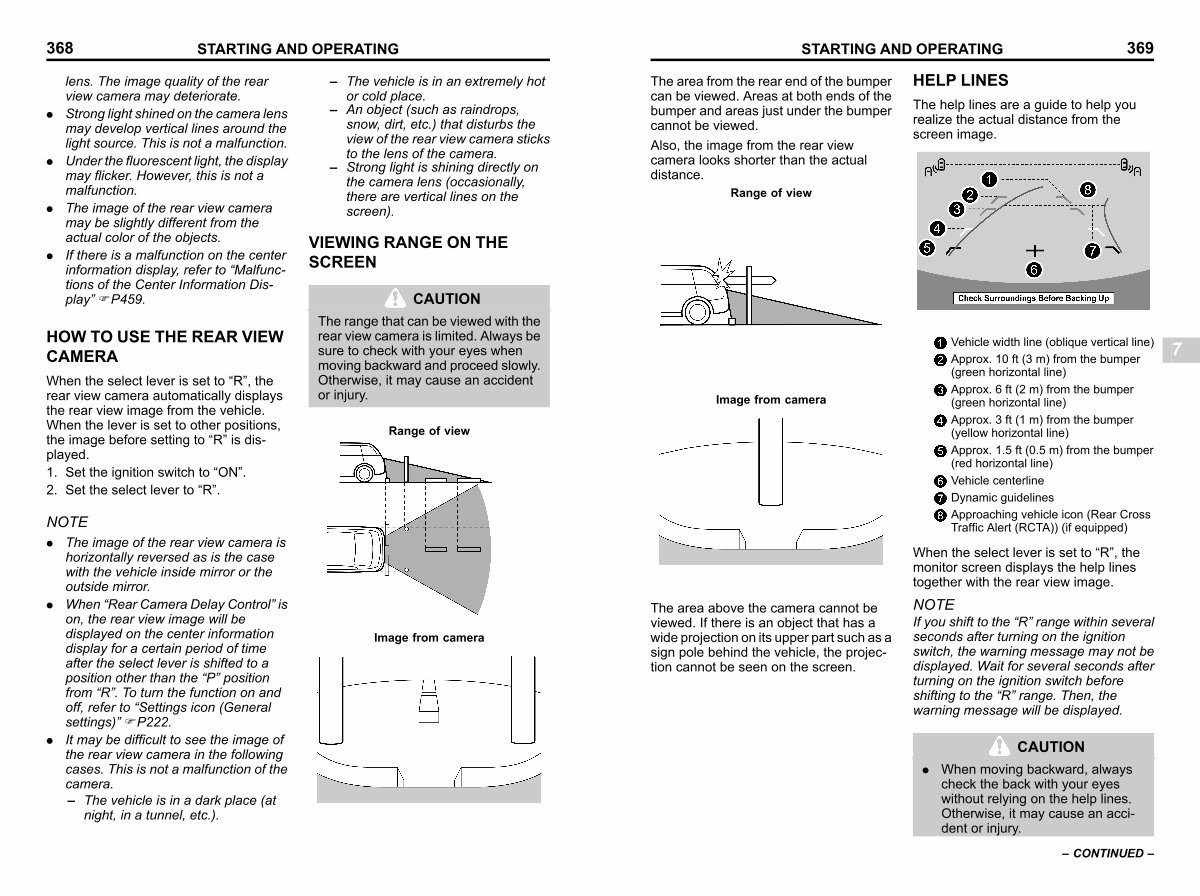

STARTING AND OPERATING 369
The area from the rear end of the bumper can be viewed. Areas at both ends of the bumper and areas just under the bumper cannot be viewed.
Also, the image from the rear view camera looks shorter than the actual distance.
Range of view
HELP LINES s07br03
The help lines are a guide to help you realize the actual distance from the screen image.
Image from camera
S _ 703164-MW
S _ 703165-MW
The area above the camera cannot be viewed. If there is an object that has a wide projection on its upper part such as a sign pole behind the vehicle, the projection cannot be seen on the screen.
S _ 703280-W
Vehicle width line( oblique vertical line)
Approx. 10 ft( 3 m) from the bumper( green horizontal line)
Approx. 6 ft( 2 m) from the bumper( green horizontal line)
Approx. 3 ft( 1 m) from the bumper( yellow horizontal line)
Approx. 1.5 ft( 0.5 m) from the bumper( red horizontal line)
Vehicle centerline Dynamic guidelines
Approaching vehicle icon( Rear Cross Traffic Alert( RCTA))( if equipped)
When the select lever is set to“ R”, the monitor screen displays the help lines together with the rear view image.
NOTE
If you shift to the“ R” range within several seconds after turning on the ignition switch, the warning message may not be displayed. Wait for several seconds after turning on the ignition switch before shifting to the“ R” range. Then, the warning message will be displayed.
7
CAUTION
. When moving backward, always check the back with your eyes without relying on the help lines. Otherwise, it may cause an accident or injury.
– CONTINUED –
