368
STARTING AND OPERATING
lens. The image quality of the rear view camera may deteriorate.
. Strong light shined on the camera lens may develop vertical lines around the light source. This is not a malfunction.
. Under the fluorescent light, the display may flicker. However, this is not a malfunction.
. The image of the rear view camera may be slightly different from the actual color of the objects.
. If there is a malfunction on the center information display, refer to“ Malfunctions of the Center Information Display” FP459.
HOW TO USE THE REAR VIEW CAMERA s07br01
When the select lever is set to“ R”, the rear view camera automatically displays the rear view image from the vehicle. When the lever is set to other positions, the image before setting to“ R” is displayed.
1. Set the ignition switch to“ ON”. 2. Set the select lever to“ R”.
NOTE
. The image of the rear view camera is horizontally reversed as is the case with the vehicle inside mirror or the outside mirror.
. When“ Rear Camera Delay Control” is on, the rear view image will be displayed on the center information display for a certain period of time after the select lever is shifted to a position other than the“ P” position from“ R”. To turn the function on and off, refer to“ Settings icon( General settings)” FP222.
. It may be difficult to see the image of the rear view camera in the following cases. This is not a malfunction of the camera.
– The vehicle is in a dark place( at night, in a tunnel, etc.).
– The vehicle is in an extremely hot
or cold place. – An object( such as raindrops,
snow, dirt, etc.) that disturbs the view of the rear view camera sticks
to the lens of the camera. – Strong light is shining directly on
the camera lens( occasionally, there are vertical lines on the screen).

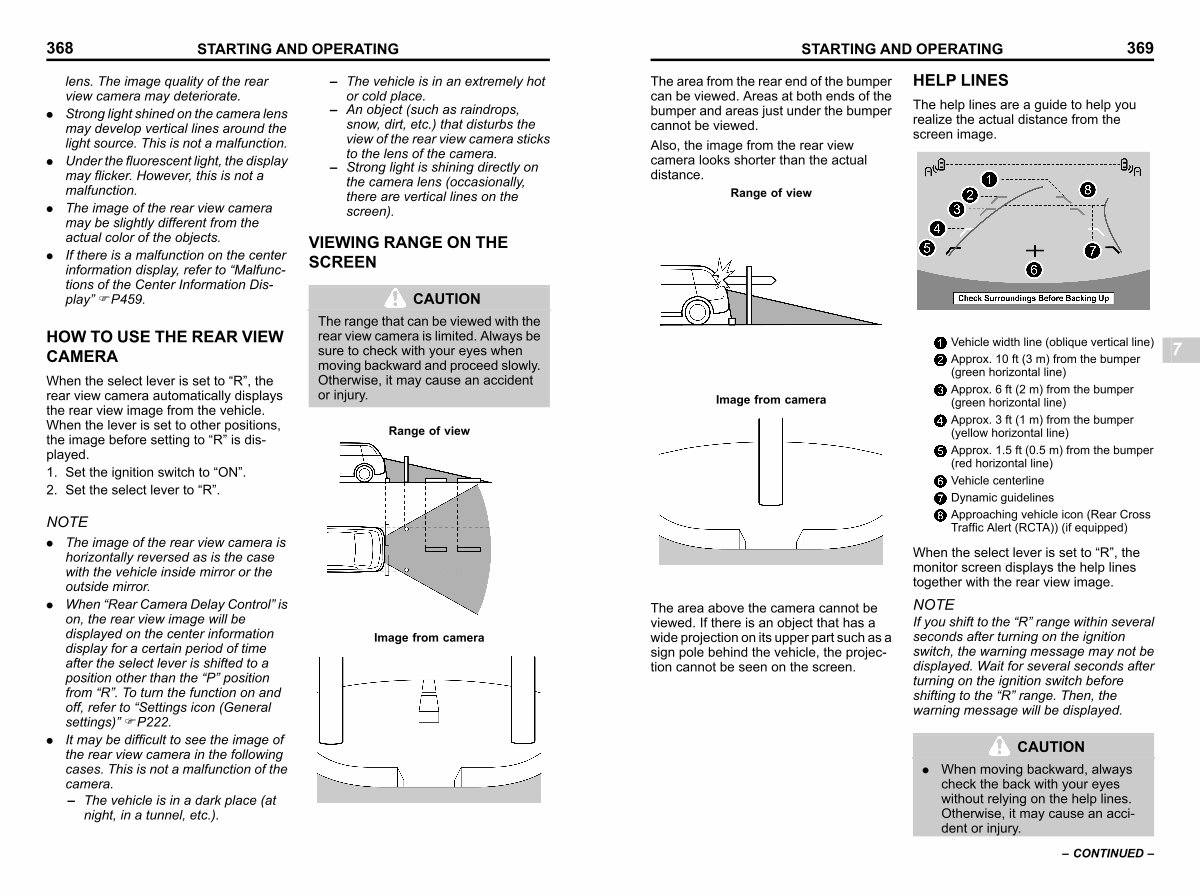

VIEWING RANGE ON THE SCREEN s07br02
CAUTION
The range that can be viewed with the rear view camera is limited. Always be sure to check with your eyes when moving backward and proceed slowly. Otherwise, it may cause an accident or injury.
Range of view
Image from camera
S _ 703214-W
S _ 703163-MW
