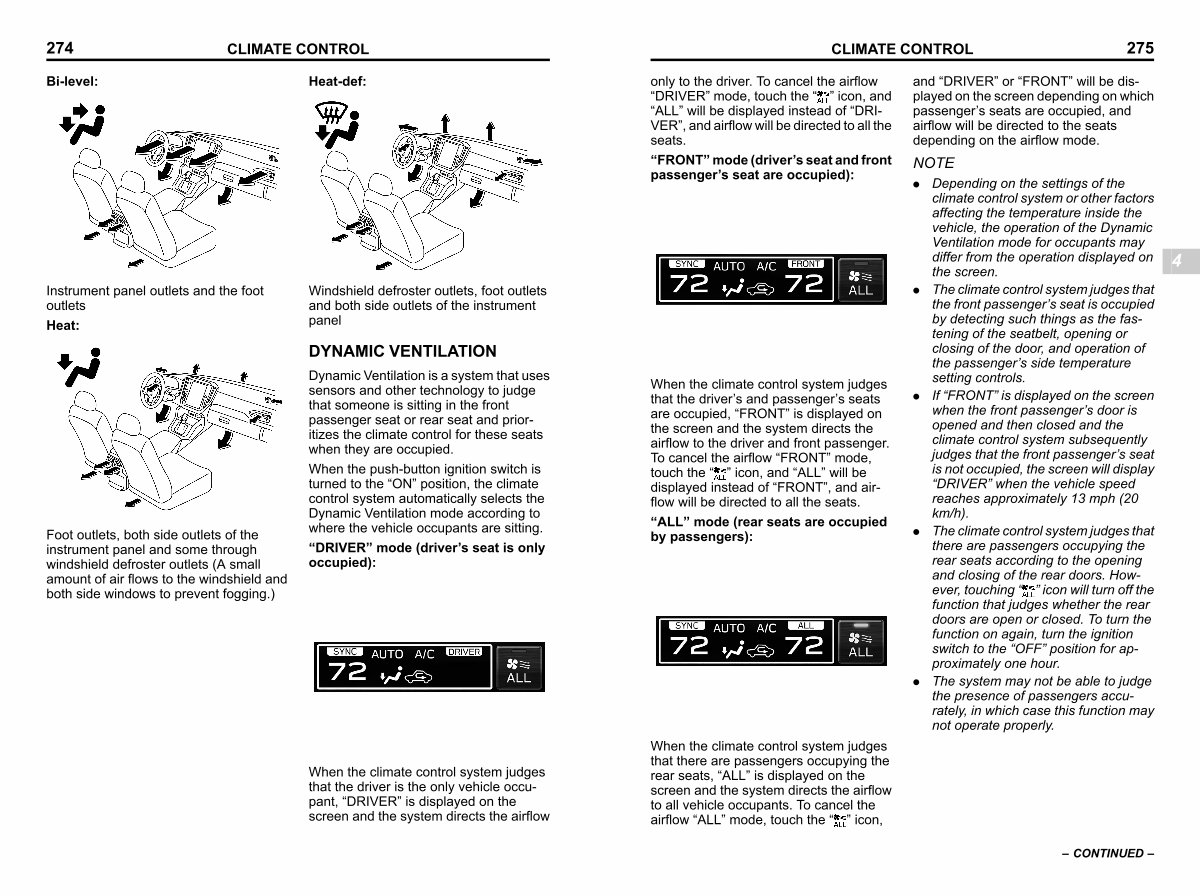

274
Bi-level:
CLIMATE CONTROL
Heat-def:
S _ 403925-W
Instrument panel outlets and the foot outlets
Heat:
S _ 403926-W
Foot outlets, both side outlets of the instrument panel and some through windshield defroster outlets( A small amount of air flows to the windshield and both side windows to prevent fogging.)
S _ 403927-W
Windshield defroster outlets, foot outlets and both side outlets of the instrument panel
DYNAMIC VENTILATION s04aj11
Dynamic Ventilation is a system that uses sensors and other technology to judge that someone is sitting in the front passenger seat or rear seat and prioritizes the climate control for these seats when they are occupied.
When the push-button ignition switch is turned to the“ ON” position, the climate control system automatically selects the Dynamic Ventilation mode according to where the vehicle occupants are sitting.
“ DRIVER” mode( driver’ s seat is only occupied):
S _ 403822-W
When the climate control system judges that the driver is the only vehicle occupant,“ DRIVER” is displayed on the screen and the system directs the airflow
