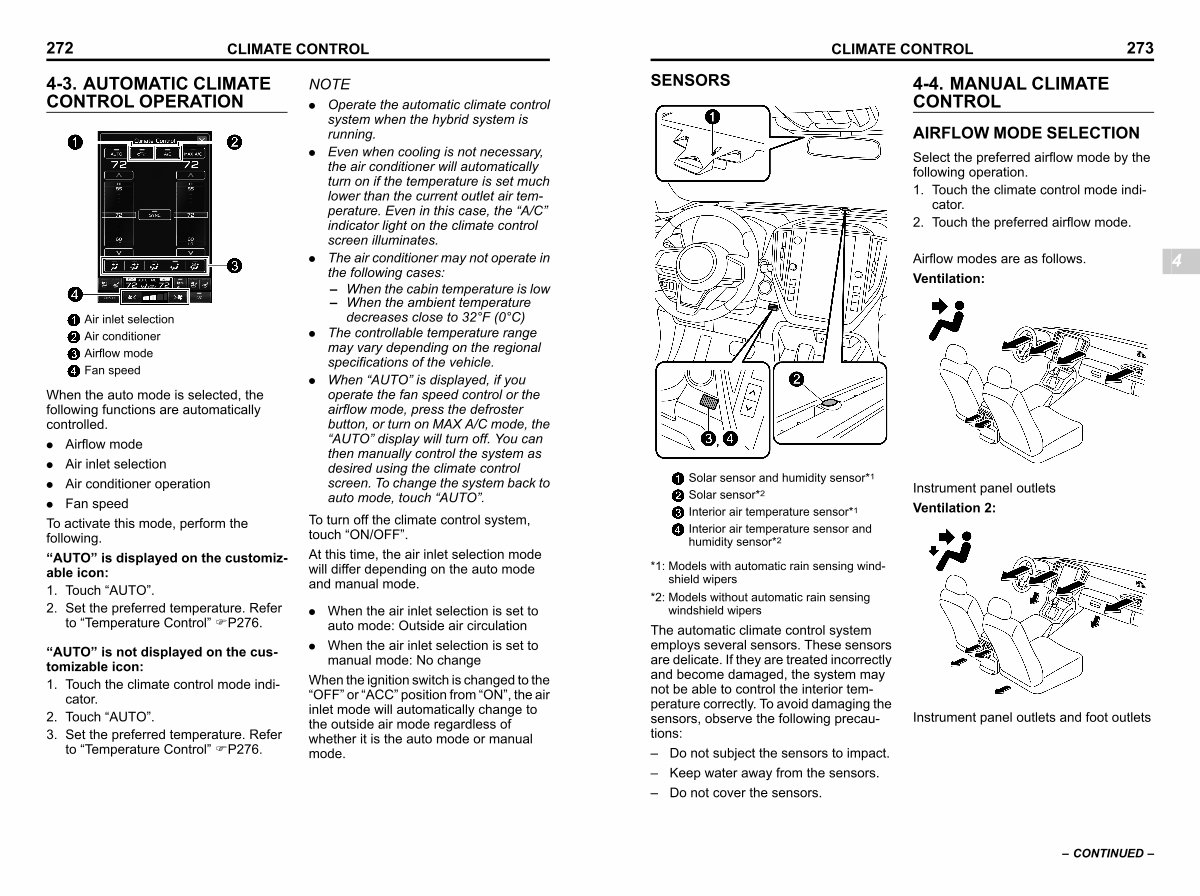

CLIMATE CONTROL 273
SENSORS
s04ai03
4-4. MANUAL CLIMATE CONTROL s04aj
AIRFLOW MODE SELECTION
s04aj01
Select the preferred airflow mode by the following operation.
1. Touch the climate control mode indicator.
2. Touch the preferred airflow mode.
Airflow modes are as follows. Ventilation:
4
S _ 403890-W
Solar sensor and humidity sensor * 1 Solar sensor * 2 Interior air temperature sensor * 1
Interior air temperature sensor and humidity sensor * 2
Instrument panel outlets Ventilation 2:
S _ 403923-W
* 1: Models with automatic rain sensing windshield wipers
* 2: Models without automatic rain sensing windshield wipers
The automatic climate control system employs several sensors. These sensors are delicate. If they are treated incorrectly and become damaged, the system may not be able to control the interior temperature correctly. To avoid damaging the sensors, observe the following precautions:
– Do not subject the sensors to impact. – Keep water away from the sensors. – Do not cover the sensors.
S _ 403924-W
Instrument panel outlets and foot outlets
– CONTINUED –
