3-44
Instruments and controls/Multi function display
! Languages
Operate the “ ” or “ ” switch on the
steering wheel to display the preferred
language. Then pull the “ /SET” switch to
select the displayed language.
! EyeSight (models with the EyeSight
system)
NOTE
For models with the EyeSight system,
refer to the Owner’s Manual supple-
ment for the EyeSight system.
After entering the “EyeSight” menu, select
one of the following menus.
! BSD/RCTA (if equipped)
After entering the “BSD/RCTA” menu,
select the “Warning Volume” menu. You
can set the volume of the warning buzzer
for RCTA (Rear Cross Traffic Alert). You
can select “Max”, “Mid”, “Min” or “Off”.
! RAB (if equipped)
NOTE
For models with the RAB (Reverse
Automatic Braking) system, refer to
“Reverse Automatic Braking System”
F7-67.
After entering the “RAB” menu, select one
of the following menus.
! Warning Volume
The volume of the warning sound that is
activated when the RAB (Reverse Auto-
matic Braking) system is in operation can
be set in 3 stages (“Max”, “Mid” and “Min”).
! Sonar Audible Alarm
The RAB (Reverse Automatic Braking)
system is equipped with a function that
emits a warning sound when the system
operates. The function can be activated or
deactivated. Select “On” to set the warn-
ing sound to active. Select “Off” to set the
warning sound to inactive.
! Default Settings
Select “Yes” to use the menu screen to
restore customized settings to the factory
default settings. Select “No” to return to
the previous screen without restoring the
factory default settings.

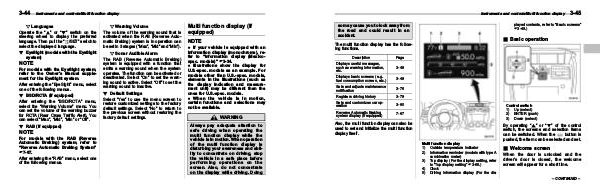

Multi function display (if
equipped)
NOTE
. If your vehicle is equipped with an
information display (monochrome), re-
fer to “Information display (Mexico-
spec. models)” F3-34.
. Illustrations show the display for
U.S.-spec. models as an example. For
models other than U.S.-spec. models,
elements in the illustrations (such as
the display indication and measure-
ment unit) may be different than the
ones for U.S.-spec. models.
. When the vehicle is in motion,
certain functions and selections may
not be available.
WARNING
Always pay adequate attention to
safe driving when operating the
multi function display while the
vehicle is in motion. When operation
of the multi function display is
disturbing your awareness and abil-
ity to concentrate on driving, stop
the vehicle in a safe place before
performing operations on the
screen. Also, do not concentrate
on the display while driving. Doing
