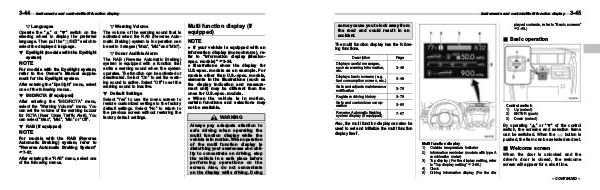

Subaru Forester Manuals 2018 Forester Owner's Manual | Page 199

Instruments and controls / Multi function display
3-45 so may cause you to look away from the road and could result in an accident.
The multi function display has the following functions.
Description
Page
Displays useful messages,
such as warning information,
3-48
etc.
Displays basic screens( e. g. fuel consumption screen, etc.)
3-49
Sets and adjusts maintenance notification
3-76
Registers driving history
3-79
Sets and customizes car operation
3-80
Reverse Automatic Braking system display( if equipped)
7-67
Also, the multi function display can also be used to set and initialize the multi function display itself.
Multi function display
1)
Outside temperature indicator
2)
Information reminder( models with type A
combination meter)
3)
Top display( For the display setting, refer
to“ Top display setting” F3-68.)
4)
Clock
5)
Driving information display( For the displayed
contents, refer to“ Basic screens” F3-49.)
& Basic operation
Control switch 1) Up( select) 2) ENTER( push) 3) Down( select)
By operating“” or“” of the control switch, the screens and selection items can be switched. When the button is pushed, the item can be selected and set.
& Welcome screen
When the door is unlocked and the driver’ s door is closed, the welcome screen will appear for a short time.
– CONTINUED –
