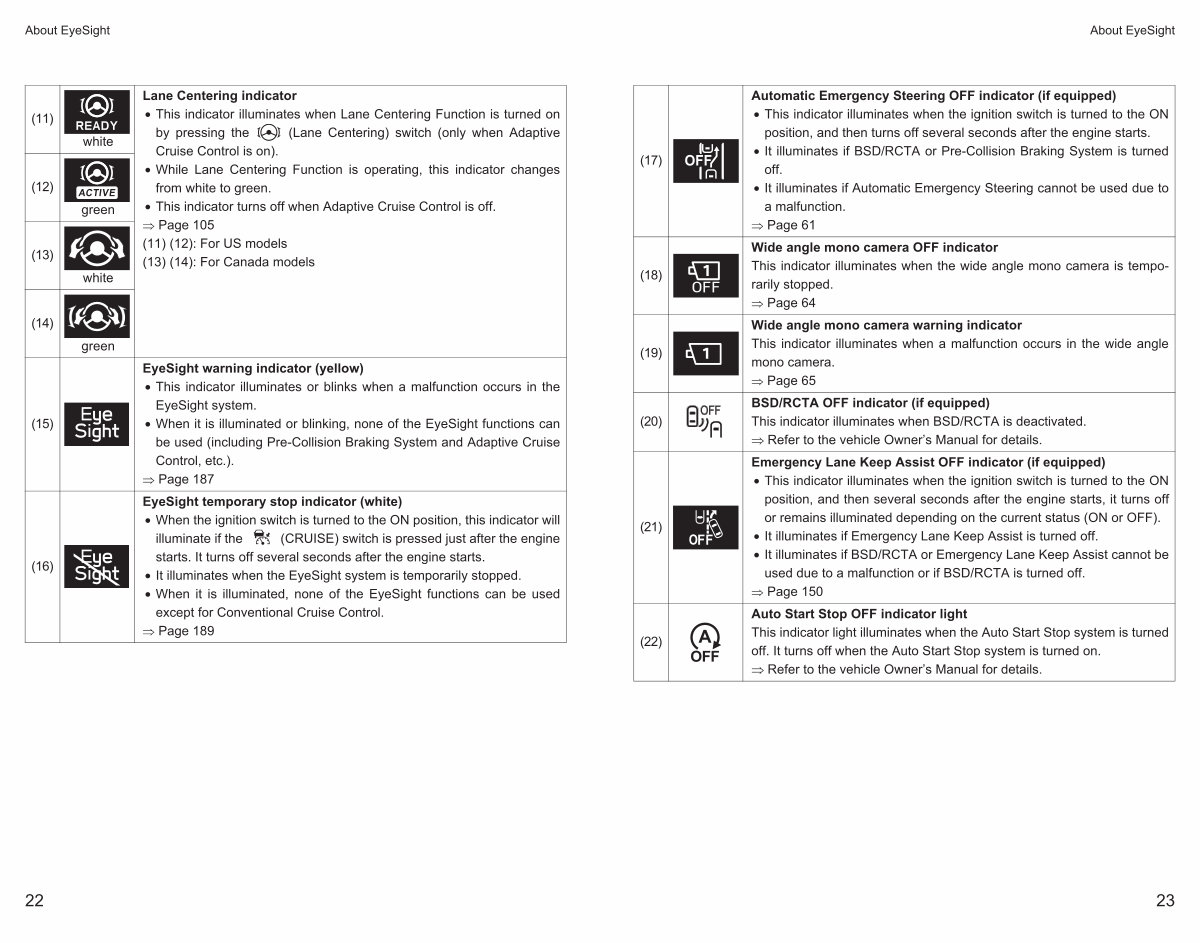

About EyeSight
( 17)
( 18)
( 19)
( 20)
( 21)
( 22)
Automatic Emergency Steering OFF indicator( if equipped)
• This indicator illuminates when the ignition switch is turned to the ON position, and then turns off several seconds after the engine starts.
• It illuminates if BSD / RCTA or Pre-Collision Braking System is turned off.
• It illuminates if Automatic Emergency Steering cannot be used due to a malfunction.
� Page 61 Wide angle mono camera OFF indicator This indicator illuminates when the wide angle mono camera is temporarily stopped.
� Page 64 Wide angle mono camera warning indicator This indicator illuminates when a malfunction occurs in the wide angle mono camera.
� Page 65 BSD / RCTA OFF indicator( if equipped) This indicator illuminates when BSD / RCTA is deactivated. � Refer to the vehicle Owner’ s Manual for details. Emergency Lane Keep Assist OFF indicator( if equipped)
• This indicator illuminates when the ignition switch is turned to the ON position, and then several seconds after the engine starts, it turns off or remains illuminated depending on the current status( ON or OFF).
• It illuminates if Emergency Lane Keep Assist is turned off.
• It illuminates if BSD / RCTA or Emergency Lane Keep Assist cannot be used due to a malfunction or if BSD / RCTA is turned off.
� Page 150 Auto Start Stop OFF indicator light This indicator light illuminates when the Auto Start Stop system is turned off. It turns off when the Auto Start Stop system is turned on. � Refer to the vehicle Owner’ s Manual for details.
23
