About EyeSight
( 23)
( 24)
( 25)
( 26)
( 27)
( 28)
( 29)

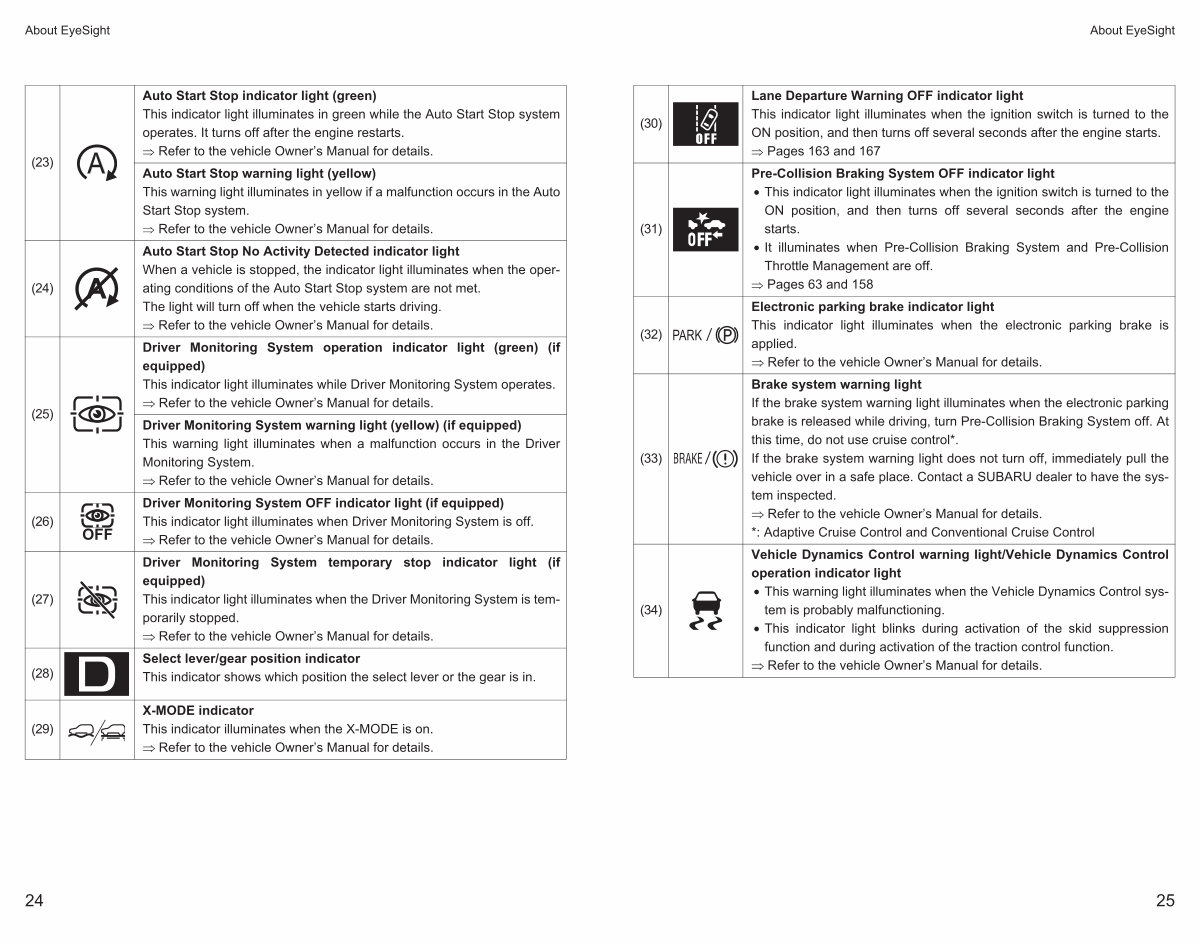

Auto Start Stop indicator light( green) This indicator light illuminates in green while the Auto Start Stop system operates. It turns off after the engine restarts.
� Refer to the vehicle Owner’ s Manual for details. Auto Start Stop warning light( yellow) This warning light illuminates in yellow if a malfunction occurs in the Auto Start Stop system.
� Refer to the vehicle Owner’ s Manual for details. Auto Start Stop No Activity Detected indicator light When a vehicle is stopped, the indicator light illuminates when the operating conditions of the Auto Start Stop system are not met. The light will turn off when the vehicle starts driving.
� Refer to the vehicle Owner’ s Manual for details. Driver Monitoring System operation indicator light( green)( if equipped) This indicator light illuminates while Driver Monitoring System operates. � Refer to the vehicle Owner’ s Manual for details. Driver Monitoring System warning light( yellow)( if equipped) This warning light illuminates when a malfunction occurs in the Driver Monitoring System. � Refer to the vehicle Owner’ s Manual for details. Driver Monitoring System OFF indicator light( if equipped) This indicator light illuminates when Driver Monitoring System is off. � Refer to the vehicle Owner’ s Manual for details. Driver Monitoring System temporary stop indicator light( if equipped) This indicator light illuminates when the Driver Monitoring System is temporarily stopped. � Refer to the vehicle Owner’ s Manual for details. Select lever / gear position indicator This indicator shows which position the select lever or the gear is in.
X-MODE indicator This indicator illuminates when the X-MODE is on. � Refer to the vehicle Owner’ s Manual for details.
24
