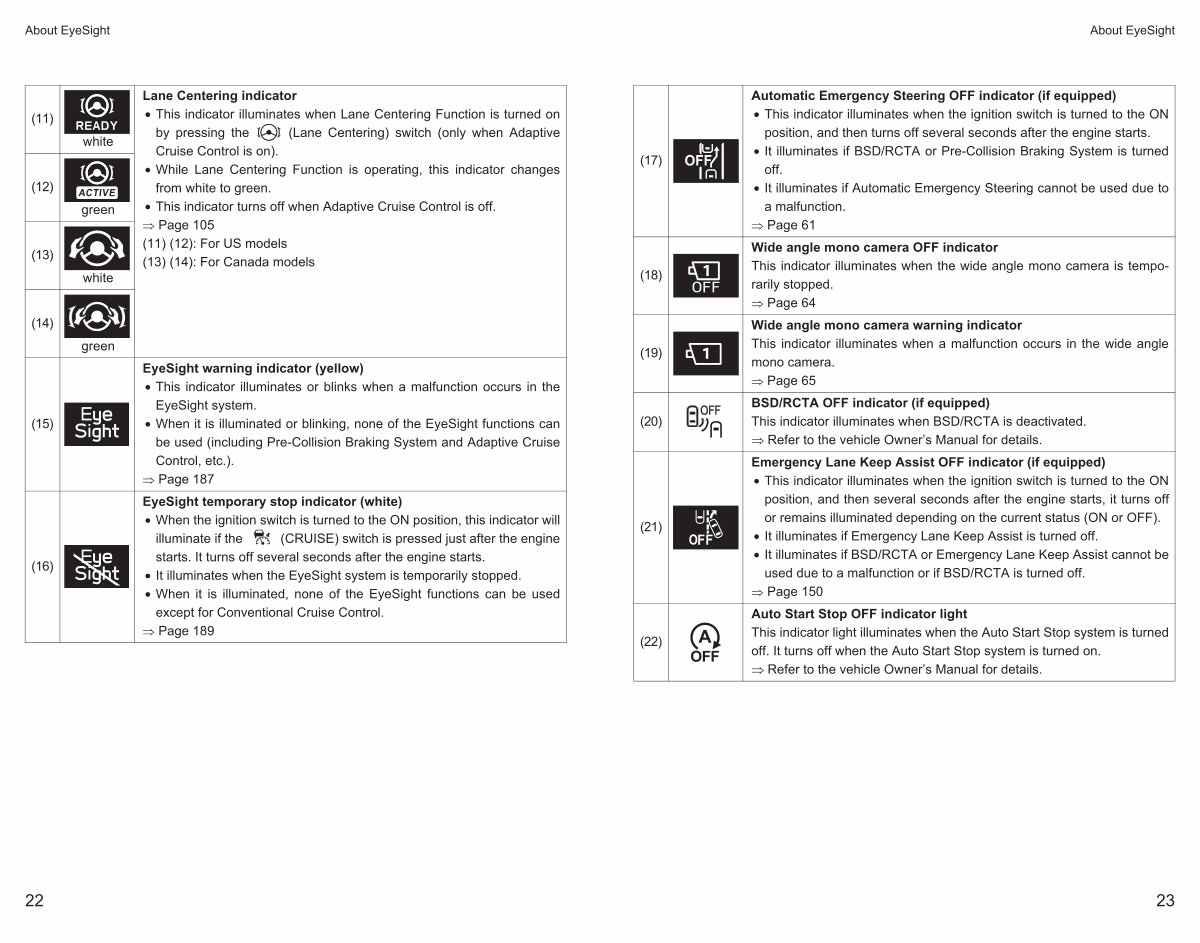

About EyeSight
( 11)
( 12)
( 13) white
green
white
Lane Centering indicator
• This indicator illuminates when Lane Centering Function is turned on by pressing the( Lane Centering) switch( only when Adaptive Cruise Control is on).
• While Lane Centering Function is operating, this indicator changes from white to green.
• This indicator turns off when Adaptive Cruise Control is off.
� Page 105( 11)( 12): For US models( 13)( 14): For Canada models
( 14)
( 15)
( 16) green
EyeSight warning indicator( yellow)
• This indicator illuminates or blinks when a malfunction occurs in the EyeSight system.
• When it is illuminated or blinking, none of the EyeSight functions can be used( including Pre-Collision Braking System and Adaptive Cruise Control, etc.).
� Page 187
EyeSight temporary stop indicator( white)
• When the ignition switch is turned to the ON position, this indicator will illuminate if the( CRUISE) switch is pressed just after the engine starts. It turns off several seconds after the engine starts.
• It illuminates when the EyeSight system is temporarily stopped.
• When it is illuminated, none of the EyeSight functions can be used except for Conventional Cruise Control.
� Page 189
22
