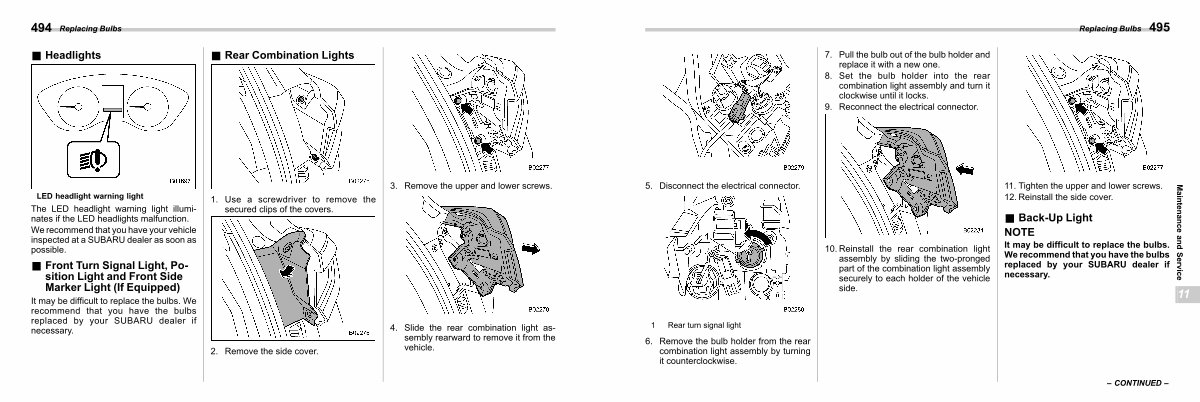

7. Pull the bulb out of the bulb holder and replace it with a new one.
8. Set the bulb holder into the rear combination light assembly and turn it clockwise until it locks.
9. Reconnect the electrical connector.
|
|||||
5. Disconnect the electrical connector. |
10. Reinstall the rear combination light assembly by sliding the two-pronged part of the combination light assembly securely to each holder of the vehicle side. |
11. Tighten the upper and lower screws. 12. Reinstall the side cover.
& Back-Up Light s11be50
NOTE
It may be difficult to replace the bulbs. We recommend that you have the bulbs replaced by your SUBARU dealer if necessary.
|
Maintenance and Service
11
|
||
1 Rear turn signal light |
|||||
6. Remove the bulb holder from the rear combination light assembly by turning it counterclockwise. |
|||||
– CONTINUED – |
