494

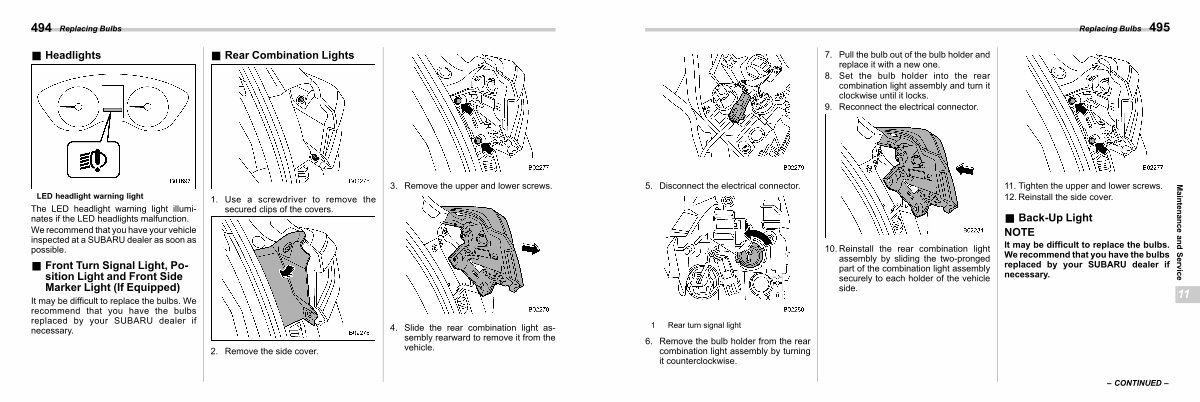

Replacing Bulbs
& Headlights s11be18
& Rear Combination Lights s11be05
LED headlight warning light
The LED headlight warning light illuminates if the LED headlights malfunction.
We recommend that you have your vehicle inspected at a SUBARU dealer as soon as possible.
& Front Turn Signal Light, Position Light and Front Side Marker Light( If Equipped)
s11be03
It may be difficult to replace the bulbs. We recommend that you have the bulbs replaced by your SUBARU dealer if necessary.
1. Use a screwdriver to remove the secured clips of the covers.
2. Remove the side cover.
3. Remove the upper and lower screws.
4. Slide the rear combination light assembly rearward to remove it from the vehicle.
