248
Mirrors
( 3) Once the zone number appears in the display, toggle the“” switch again until your current location zone number appears. After you stop pressing the switch, your new zone number will be saved. Within a few seconds, the display will show a compass direction.
4. If the vehicle’ s magnetics have changed or if the compass appears inaccurate, recalibrate the compass. Press and hold the“” switch for more than 9 seconds or until a“ C” appears in the display. Once a“ C” appears in the display, slowly drive the vehicle in circles until compass is calibrated.

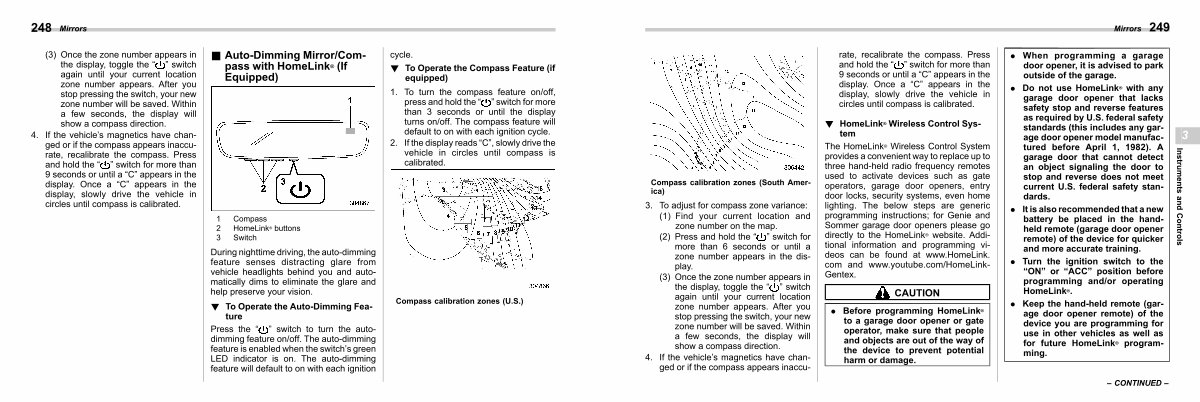

& Auto-Dimming Mirror / Compass with HomeLink ®( If Equipped) s03ap07
1 Compass 2 HomeLink ® buttons 3 Switch
During nighttime driving, the auto-dimming feature senses distracting glare from vehicle headlights behind you and automatically dims to eliminate the glare and help preserve your vision.
! To Operate the Auto-Dimming Feature s03ap0705
Press the“” switch to turn the autodimming feature on / off. The auto-dimming feature is enabled when the switch’ s green LED indicator is on. The auto-dimming feature will default to on with each ignition
cycle.
! To Operate the Compass Feature( if equipped) s03ap0706
1. To turn the compass feature on / off, press and hold the“” switch for more than 3 seconds or until the display turns on / off. The compass feature will default to on with each ignition cycle.
2. If the display reads“ C”, slowly drive the vehicle in circles until compass is calibrated.
Compass calibration zones( U. S.)
