50
Seats

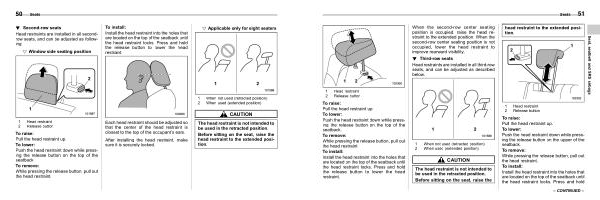

! Second-row seats
S01AQ0403
Head restraints are installed in all secondrow seats, and can be adjusted as following.
! Window side seating position
S01AQ040301
To install:
Install the head restraint into the holes that are located on the top of the seatback until the head restraint locks. Press and hold the release button to lower the head restraint.
! Applicable only for eight seaters
S01AQ040303
1 When not used( retracted position) 2 When used( extended position)
1 Head restraint 2 Release button
To raise: Pull the head restraint up. To lower:
Push the head restraint down while pressing the release button on the top of the seatback.
To remove:
While pressing the release button, pull out the head restraint.
Each head restraint should be adjusted so that the center of the head restraint is closest to the top of the occupant’ s ears.
After installing the head restraint, make sure it is securely locked.
CAUTION
The head restraint is not intended to be used in the retracted position.
Before sitting on the seat, raise the head restraint to the extended position.
