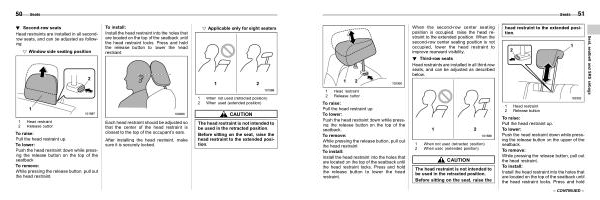

Seats 51 |
|||||||||
1 Head restraint 2 Release button |
When the second-row center seating position is occupied, raise the head restraint to the extended position. When the second-row center seating position is not occupied, lower the head restraint to improve rearward visibility.
! Third-row seats
S01AQ0404
Head restraints are installed in all third-row seats, and can be adjusted as described below.
|
head restraint to the extended position. |
Seat, seatbelt and SRS airbags |
||||||
|
To raise: Pull the head restraint up. To lower:
Push the head restraint down while pressing the release button on the top of the seatback.
To remove:
While pressing the release button, pull out the head restraint.
To install:
Install the head restraint into the holes that are located on the top of the seatback until the head restraint locks. Press and hold the release button to lower the head restraint.
|
1 When not used( retracted position) 2 When used( extended position)
CAUTION
The head restraint is not intended to be used in the retracted position.
Before sitting on the seat, raise the
|
1 Head restraint 2 Release button
To raise: Pull the head restraint up. To lower:
Push the head restraint down while pressing the release button on the upper of the seatback.
To remove:
While pressing the release button, pull out the head restraint.
To install:
Install the head restraint into the holes that are located on the top of the seatback until the head restraint locks. Press and hold
|
|||||||
– CONTINUED – |
