324

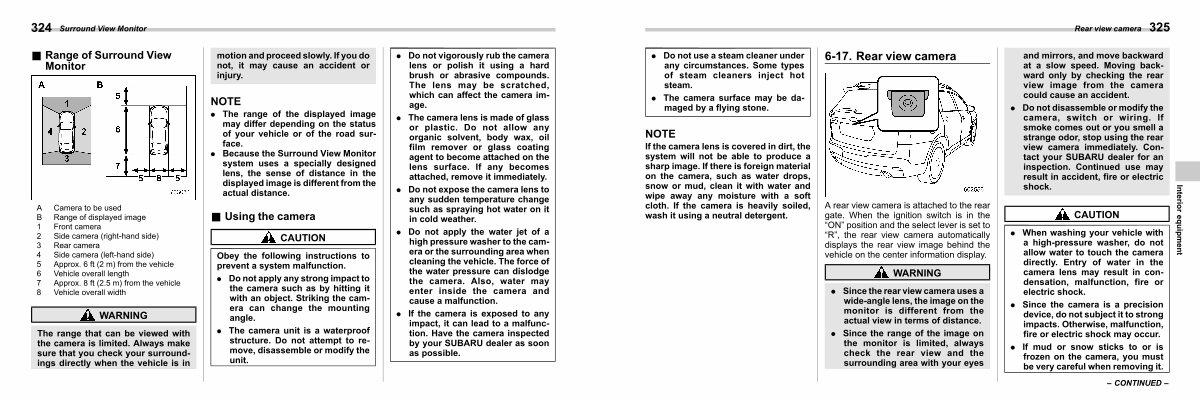

Surround View Monitor
& Range of Surround View Monitor
A Camera to be used B Range of displayed image 1 Front camera 2 Side camera( right-hand side) 3 Rear camera 4 Side camera( left-hand side) 5 Approx. 6 ft( 2 m) from the vehicle 6 Vehicle overall length 7 Approx. 8 ft( 2.5 m) from the vehicle 8 Vehicle overall width
WARNING
S06BJ04
The range that can be viewed with the camera is limited. Always make sure that you check your surroundings directly when the vehicle is in motion and proceed slowly. If you do not, it may cause an accident or injury.
NOTE
. The range of the displayed image may differ depending on the status of your vehicle or of the road surface.
. Because the Surround View Monitor system uses a specially designed lens, the sense of distance in the displayed image is different from the actual distance.
& Using the camera CAUTION
S06BJ05
Obey the following instructions to prevent a system malfunction.
. Do not apply any strong impact to the camera such as by hitting it with an object. Striking the camera can change the mounting angle.
. The camera unit is a waterproof structure. Do not attempt to remove, disassemble or modify the unit.
. Do not vigorously rub the camera lens or polish it using a hard brush or abrasive compounds. The lens may be scratched, which can affect the camera image.
. The camera lens is made of glass or plastic. Do not allow any organic solvent, body wax, oil film remover or glass coating agent to become attached on the lens surface. If any becomes attached, remove it immediately.
. Do not expose the camera lens to any sudden temperature change such as spraying hot water on it in cold weather.
. Do not apply the water jet of a high pressure washer to the camera or the surrounding area when cleaning the vehicle. The force of the water pressure can dislodge the camera. Also, water may enter inside the camera and cause a malfunction.
. If the camera is exposed to any impact, it can lead to a malfunction. Have the camera inspected by your SUBARU dealer as soon as possible.
