Rear view camera 325 |
||||||
|
. Do not use a steam cleaner under any circumstances. Some types of steam cleaners inject hot steam.
. The camera surface may be damaged by a flying stone.
NOTE
If the camera lens is covered in dirt, the system will not be able to produce a sharp image. If there is foreign material on the camera, such as water drops, snow or mud, clean it with water and wipe away any moisture with a soft cloth. If the camera is heavily soiled, wash it using a neutral detergent.
|

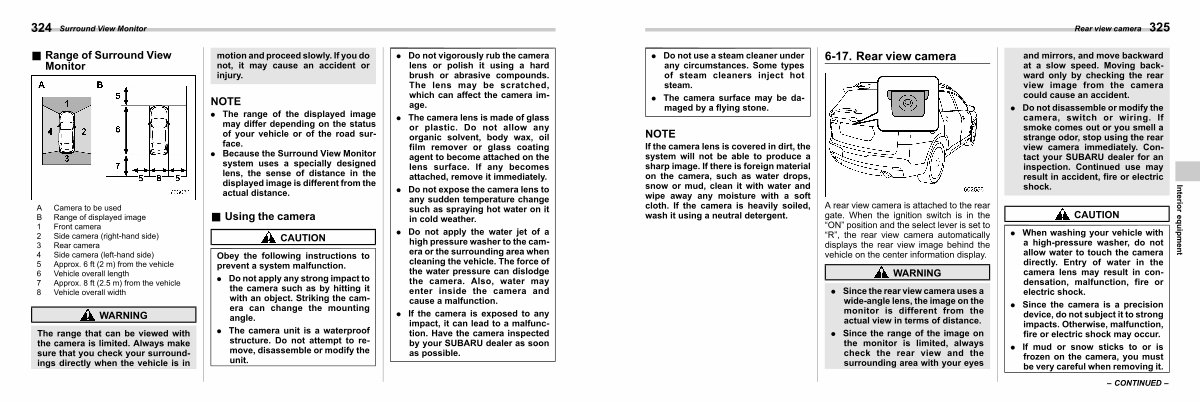

6-17. Rear view camera
S06AW
|
A rear view camera is attached to the rear gate. When the ignition switch is in the“ ON” position and the select lever is set to“ R”, the rear view camera automatically displays the rear view image behind the vehicle on the center information display.
WARNING
. Since the rear view camera uses a wide-angle lens, the image on the monitor is different from the actual view in terms of distance.
. Since the range of the image on the monitor is limited, always check the rear view and the surrounding area with your eyes
|
and mirrors, and move backward at a slow speed. Moving backward only by checking the rear view image from the camera could cause an accident.
. Do not disassemble or modify the camera, switch or wiring. If smoke comes out or you smell a strange odor, stop using the rear view camera immediately. Contact your SUBARU dealer for an inspection. Continued use may result in accident, fire or electric shock.
|
CAUTION
. When washing your vehicle with a high-pressure washer, do not allow water to touch the camera directly. Entry of water in the camera lens may result in condensation, malfunction, fire or electric shock.
. Since the camera is a precision device, do not subject it to strong impacts. Otherwise, malfunction, fire or electric shock may occur.
. If mud or snow sticks to or is frozen on the camera, you must be very careful when removing it.
|
Interior equipment |
|
– CONTINUED – |
