! Front view |
S06BJ0303 |
! Side view |
S06BJ0304 |
! Rear view |
S06BJ0305 |
|

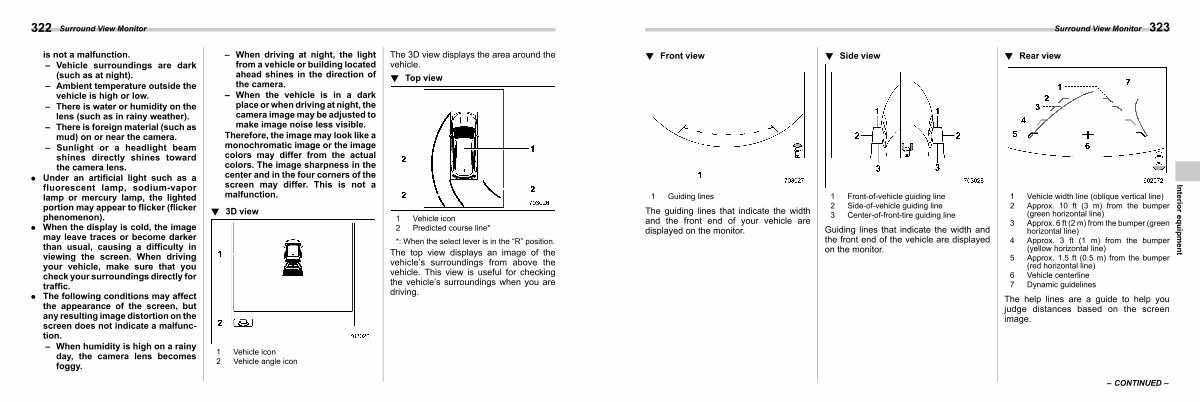

1 Guiding lines
The guiding lines that indicate the width and the front end of your vehicle are displayed on the monitor.
|
1 Front-of-vehicle guiding line 2 Side-of-vehicle guiding line 3 Center-of-front-tire guiding line
Guiding lines that indicate the width and the front end of the vehicle are displayed on the monitor.
|
1 Vehicle width line( oblique vertical line)
2 Approx. 10 ft( 3 m) from the bumper( green horizontal line)
3 Approx. 6 ft( 2 m) from the bumper( green horizontal line)
4 Approx. 3 ft( 1 m) from the bumper( yellow horizontal line)
5 Approx. 1.5 ft( 0.5 m) from the bumper( red horizontal line)
6 Vehicle centerline 7 Dynamic guidelines
|
Interior equipment |
|||||
The help lines are a guide to help you judge distances based on the screen image. |
||||||||
– CONTINUED – |
