318
Surround View Monitor
or a road covered in snow.
– The camera malfunctions( e. g. the lens or bracket is broken).
– The outside mirrors are retracted.
– The front door is not fully closed.
. If the outside temperature is low, the monitor screen may become dark or the image may become dim. In particular, the image of a moving object may appear distorted or disappear from the screen. Always remain alert and check the surrounding traffic directly when driving.
NOTE
If there is a Surround View Monitor system malfunction, an error message“”,“” or“” is displayed on the center information display. For details, refer to“ Malfunctions of the center information display” FP463.

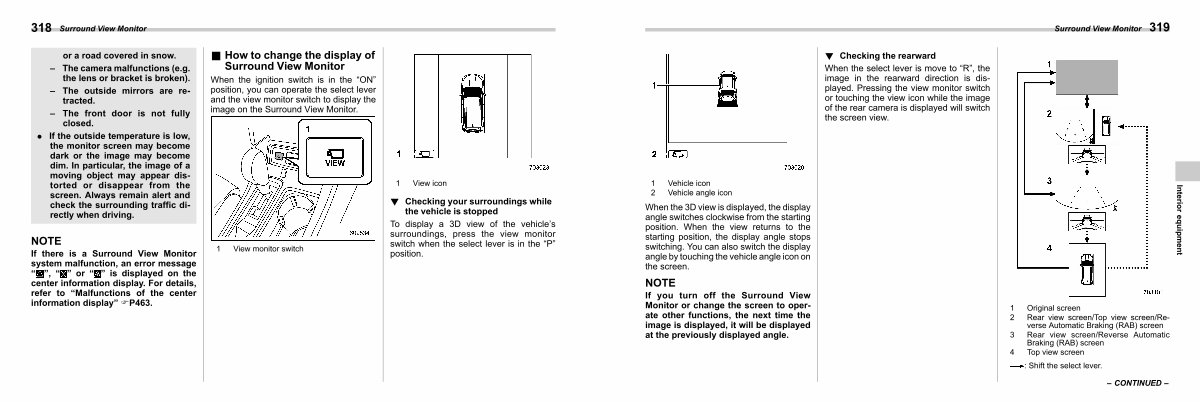

& How to change the display of Surround View Monitor
S06BJ01
When the ignition switch is in the“ ON” position, you can operate the select lever and the view monitor switch to display the image on the Surround View Monitor.
1 View monitor switch
1 View icon
! Checking your surroundings while the vehicle is stopped
S06BJ0101
To display a 3D view of the vehicle’ s surroundings, press the view monitor switch when the select lever is in the“ P” position.
