Under-floor storage compartment 317 |
|||||||
|

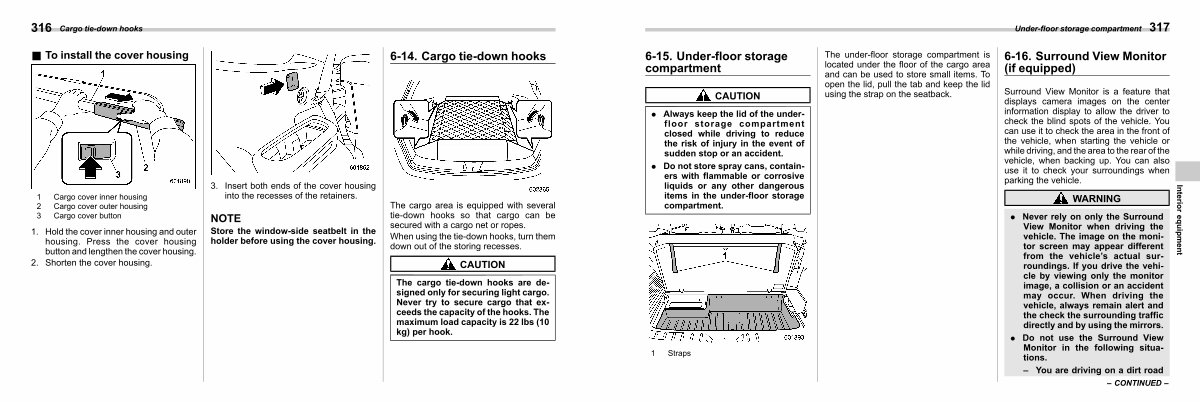

6-15. Under-floor storage compartment
CAUTION
S06AN
. Always keep the lid of the underfloor storage compartment closed while driving to reduce the risk of injury in the event of sudden stop or an accident.
. Do not store spray cans, containers with flammable or corrosive liquids or any other dangerous items in the under-floor storage compartment.
1 Straps
|
The under-floor storage compartment is located under the floor of the cargo area and can be used to store small items. To open the lid, pull the tab and keep the lid using the strap on the seatback. |
6-16. Surround View Monitor( if equipped)
S06BJ
Surround View Monitor is a feature that displays camera images on the center information display to allow the driver to check the blind spots of the vehicle. You can use it to check the area in the front of the vehicle, when starting the vehicle or while driving, and the area to the rear of the vehicle, when backing up. You can also use it to check your surroundings when parking the vehicle.
|
WARNING
. Never rely on only the Surround View Monitor when driving the vehicle. The image on the monitor screen may appear different from the vehicle’ s actual surroundings. If you drive the vehicle by viewing only the monitor image, a collision or an accident may occur. When driving the vehicle, always remain alert and the check the surrounding traffic directly and by using the mirrors.
. Do not use the Surround View Monitor in the following situations.
– You are driving on a dirt road – CONTINUED –
|
Interior equipment |
