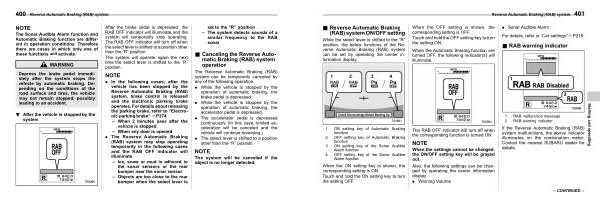

& Reverse Automatic Braking ( RAB ) system ON / OFF setting
S07BN05
While the select lever is shifted to the “ R ” position , the below functions of the Reverse Automatic Braking ( RAB ) system can be set by operating the center information display .
|
When the OFF setting is shown , the corresponding setting is OFF .
Touch and hold the OFF setting key to turn the setting ON .
When the Automatic Braking function are turned OFF , the following indicator ( s ) will illuminate .
|
. Sonar Audible Alarm For details , refer to “ Car settings ” FP215 . |
& RAB warning indicator
S07BN07
|
||||
|
1 ON setting key of Automatic Braking function
2 OFF setting key of Automatic Braking function
3 ON setting key of the Sonar Audible Alarm function
4 OFF setting key of the Sonar Audible Alarm function
When the ON setting key is shown , the corresponding setting is ON .
Touch and hold the ON setting key to turn the setting OFF .
|
The RAB OFF indicator will turn off when the corresponding function is turned ON .
NOTE
When the settings cannot be changed , the ON / OFF setting key will be grayed out .
Also , the following settings can be changed by operating the center information display .
. Warning Volume
|
1 RAB malfunction message 2 RAB warning indicator
If the Reverse Automatic Braking ( RAB ) system malfunctions , the above indicator illuminates on the combination meter . Contact the nearest SUBARU dealer for details .
|
Starting and operating |
||||
– CONTINUED – |
