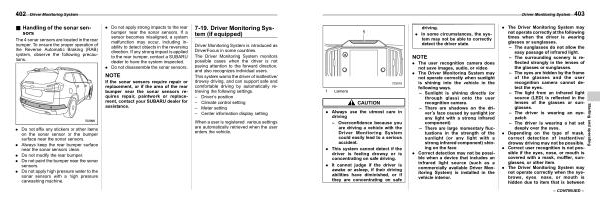

402
Driver Monitoring System
& Handling of the sonar sensors
S07BN06
The 4 sonar sensors are located in the rear bumper . To ensure the proper operation of the Reverse Automatic Braking ( RAB ) system , observe the following precautions .
. Do not affix any stickers or other items on the sonar sensor or the bumper surface near the sonar sensors .
. Always keep the rear bumper surface near the sonar sensors clean .
. Do not modify the rear bumper .
. Do not paint the bumper near the sonar sensors .
. Do not apply high pressure water to the sonar sensors with a high pressure carwashing machine .
. Do not apply strong impacts to the rear bumper near the sonar sensors . If a sensor becomes misaligned , a system malfunction may occur , including inability to detect objects in the reversing direction . If any strong impact is applied to the rear bumper , contact a SUBARU dealer to have the system inspected .
. Do not disassemble the sonar sensors .
NOTE
If the sonar sensors require repair or replacement , or if the area of the rear bumper near the sonar sensors requires repair , paintwork or replacement , contact your SUBARU dealer for assistance .
7-19 . Driver Monitoring System ( if equipped )
S07BP
Driver Monitoring System is introduced as DriverFocus in some countries .
The Driver Monitoring System monitors possible cases when the driver is not paying attention to the forward direction , and also recognizes individual users .
This system warns the driver of inattentive / drowsy driving , and can support safe and comfortable driving by automatically retrieving the following settings .
– Driver ’ s position – Climate control setting – Meter setting – Center information display setting
When a user is registered , various settings are automatically retrieved when the user enters the vehicle .
