326

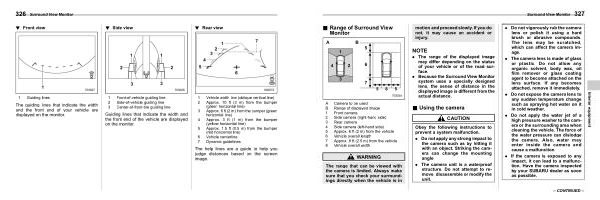

Surround View Monitor
! Front view |
S06BJ0303 |
! Side view |
S06BJ0304 |
! Rear view |
S06BJ0305 |
1 Guiding lines
The guiding lines that indicate the width and the front end of your vehicle are displayed on the monitor .
1 Front-of-vehicle guiding line 2 Side-of-vehicle guiding line 3 Center-of-front-tire guiding line
Guiding lines that indicate the width and the front end of the vehicle are displayed on the monitor .
1 Vehicle width line ( oblique vertical line )
2 Approx . 10 ft ( 3 m ) from the bumper ( green horizontal line )
3 Approx . 6 ft ( 2 m ) from the bumper ( green horizontal line )
4 Approx . 3 ft ( 1 m ) from the bumper ( yellow horizontal line )
5 Approx . 1.5 ft ( 0.5 m ) from the bumper ( red horizontal line )
6 Vehicle centerline 7 Dynamic guidelines
The help lines are a guide to help you judge distances based on the screen image .
