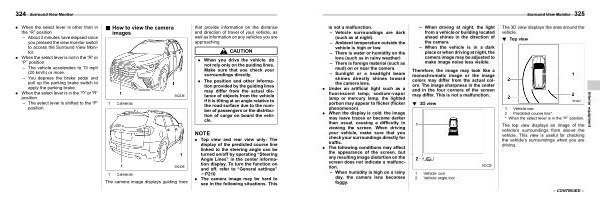

Surround View Monitor 325 |
||||
|
is not a malfunction . – Vehicle surroundings are dark
( such as at night ). – Ambient temperature outside the vehicle is high or low . – There is water or humidity on the lens ( such as in rainy weather ). – There is foreign material ( such as mud ) on or near the camera .
– Sunlight or a headlight beam shines directly shines toward the camera lens .
. Under an artificial light such as a fluorescent lamp , sodium-vapor lamp or mercury lamp , the lighted portion may appear to flicker ( flicker phenomenon ).
. When the display is cold , the image may leave traces or become darker than usual , causing a difficulty in viewing the screen . When driving your vehicle , make sure that you check your surroundings directly for traffic .
. The following conditions may affect the appearance of the screen , but any resulting image distortion on the screen does not indicate a malfunction . – When humidity is high on a rainy day , the camera lens becomes foggy .
|
– When driving at night , the light from a vehicle or building located ahead shines in the direction of the camera .
– When the vehicle is in a dark place or when driving at night , the camera image may be adjusted to make image noise less visible .
Therefore , the image may look like a monochromatic image or the image colors may differ from the actual colors . The image sharpness in the center and in the four corners of the screen may differ . This is not a malfunction .
! 3D view
1 Vehicle icon 2 Vehicle angle icon
S06BJ0301
|
The 3D view displays the area around the vehicle .
! Top view
|
S06BJ0302
1 Vehicle icon 2 Predicted course line * *: When the select lever is in the “ R ” position .
The top view displays an image of the vehicle ’ s surroundings from above the vehicle . This view is useful for checking the vehicle ’ s surroundings when you are driving .
|
Interior equipment |
– CONTINUED – |
