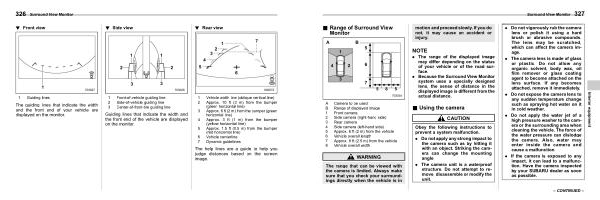

Surround View Monitor 327 |
|||||||||||
& Range of Surround View Monitor |
A Camera to be used B Range of displayed image 1 Front camera 2 Side camera ( right-hand side ) 3 Rear camera 4 Side camera ( left-hand side ) 5 Approx . 6 ft ( 2 m ) from the vehicle 6 Vehicle overall length 7 Approx . 8 ft ( 2.5 m ) from the vehicle 8 Vehicle overall width
WARNING
S06BJ04
|
The range that can be viewed with the camera is limited . Always make sure that you check your surroundings directly when the vehicle is in |
motion and proceed slowly . If you do not , it may cause an accident or injury .
NOTE
. The range of the displayed image may differ depending on the status of your vehicle or of the road surface .
. Because the Surround View Monitor system uses a specially designed lens , the sense of distance in the displayed image is different from the actual distance .
|
& Using the camera
CAUTION
S06BJ05
Obey the following instructions to prevent a system malfunction .
. Do not apply any strong impact to the camera such as by hitting it with an object . Striking the camera can change the mounting angle .
. The camera unit is a waterproof structure . Do not attempt to remove , disassemble or modify the unit .
|
. Do not vigorously rub the camera lens or polish it using a hard brush or abrasive compounds . The lens may be scratched , which can affect the camera image .
. The camera lens is made of glass or plastic . Do not allow any organic solvent , body wax , oil film remover or glass coating agent to become attached on the lens surface . If any becomes attached , remove it immediately .
. Do not expose the camera lens to any sudden temperature change such as spraying hot water on it in cold weather .
. Do not apply the water jet of a high pressure washer to the camera or the surrounding area when cleaning the vehicle . The force of the water pressure can dislodge the camera . Also , water may enter inside the camera and cause a malfunction .
. If the camera is exposed to any impact , it can lead to a malfunction . Have the camera inspected by your SUBARU dealer as soon as possible .
|
Interior equipment |
|||||
– CONTINUED – |
