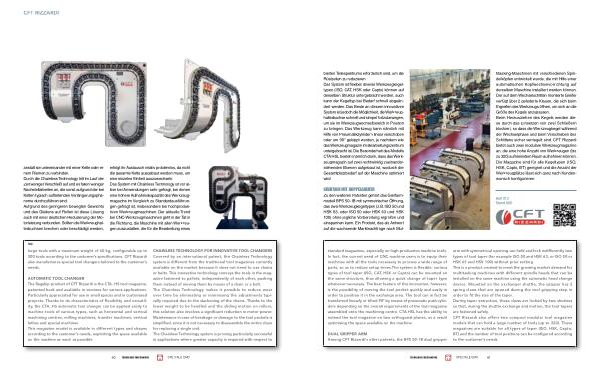

breiten Teilespektrums erforderlich sind , um die Rüstzeiten zu reduzieren . Das System ist flexibel : diverse Werkzeugkegeltypen ( ISO , CAT , HSK oder Capto ) können auf derselben Struktur untergebracht werden , auch kann der Kegeltyp bei Bedarf schnell abgeändert werden . Das Beste an diesem innovativen System ist jedoch die Möglichkeit , die Werkzeughalterbuchse schnell und simpel fortzubewegen , um sie im Werkzeugwechselbereich in Position zu bringen . Das Werkzeug kann nämlich mit Hilfe von Pneumatikzylindern linear verschoben oder um 90 ° gekippt werden , je nachdem wie das Werkzeugmagazin im Bearbeitungszentrum untergebracht ist . Die Besonderheit des Modells CTA HSL besteht nämlich darin , dass das Werkzeugmagazin auf zwei rechtwinklig zueinanderstehenden Ebenen aufgebaut ist , wodurch der Gesamtplatzbedarf auf der Maschine optimiert wird .
GREIFARM MIT DOPPELGREIFER
Zu den weiteren Patenten gehört das Greifarmmodell BPS 50- IB mit symmetrischer Öffnung , das zwei Werkzeugkegeltypen ( z . B . ISO 50 und HSK 63 , oder ISO 50 oder HSK 63 und HSK 100 ) ohne jegliche Vorbereitung ergreifen und einspannen kann . Ein Produkt , das als Antwort auf die wachsende Marktnachfrage nach Multitasking-Maschinen mit verschiedenen Spindelköpfen entwickelt wurde , die mit Hilfe einer automatischen Kopfwechselvorrichtung auf derselben Maschine installiert werden können . Der auf dem Wechselschlitten montierte Greifer verfügt über 2 gefederte Klauen , die sich beim Ergreifen des Werkzeugs öffnen , um sich an die Größe des Kegels anzupassen . Beim Herausziehen des Kegels werden diese durch das Einsetzen von zwei Schließern blockiert , so dass die Werkzeugkegel während der Wechselphase und beim Verschieben des Schlittens sicher verriegelt sind . CFT Rizzardi bietet auch zwei modulare Werkzeugmagazine an , die eine hohe Anzahl von Werkzeugen ( bis zu 320 ) auf kleinstem Raum aufnehmen können . Die Magazine sind für alle Kegeltypen ( ISO , HSK , Capto , BT ) geeignet und die Anzahl der Werkzeugplätze lässt sich ganz nach Kundenwunsch konfigurieren .
Hall 013 Stand A06
standard magazines , especially on high-production machine tools . In fact , the current need of CNC machine users is to equip their machines with all the tools necessary to process a wide range of parts , so as to reduce setup times . The system is flexible : various types of tool taper ( ISO , CAT , HSK or Capto ) can be mounted on the same structure , thus allowing a quick change of taper type whenever necessary . The best feature of this innovation , however , is the possibility of moving the tool pocket quickly and easily in order to position it in the exchange area . The tool can in fact be transferred linearly or tilted 90 ° by means of pneumatic push cylinders depending on the overall requirements of the tool magazine assembled onto the machining centre . CTA HSL has the ability to extend the tool magazine on two orthogonal planes , as a result optimising the space available on the machine .
DUAL GRIPPER ARM Among CFT Rizzardi ’ s other patents , the BPS 50- IB dual gripper arm with symmetrical opening can hold and lock indifferently two types of tool taper ( for example ISO 50 and HSK 63 , or ISO 50 or HSK 63 and HSK 100 ) without prior setting . This is a product created to meet the growing market demand for multitasking machines with different spindle heads that can be installed on the same machine using the automatic head change device . Mounted on the exchanger shuttle , the gripper has 2 spring claws that are opened during the tool gripping step in order to fit the size of the taper . During taper extraction , these claws are locked by two shutters so that , during the shuttle exchange and motion , the tool tapers are fastened safely . CFT Rizzardi also offers two compact modular tool magazine models that can hold a large number of tools ( up to 320 ). These magazines are suitable for all types of taper ( ISO , HSK , Capto , BT ) and the number of tool positions can be configured according to the customer ’ s needs .
