Solid core door
30 minute fire door
Protected fire area
Distance to nearest fire exit
Route to nearest fire exit
Emergency exit sign
Heat detector
Smoke detector
Emergency lighting
Fire extinguisher
Refuge call button
Client: The Kings Theatre Company
Project Title: The Ageless Playhouse

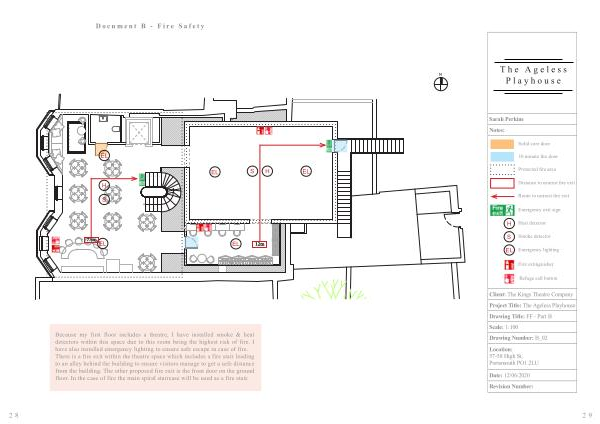

Drawing Title: FF - Part B
Scale: 1:100
Drawing Number: B_02
Location:
57-58 High St,
Portsmouth PO1 2LU
Date: 12/06/2020
