Document K - Protection from Falling,
Collisions and Impact
C
11
10
A
B
9
8
UP
1 2 3 4 5
6
7

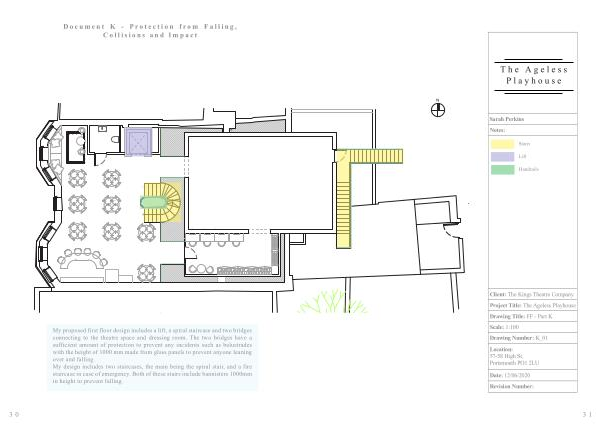

My proposed first floor design includes a lift, a spiral staircase and two bridges
connecting to the theatre space and dressing room. The two bridges have a
sufficient amount of protection to prevent any incidents such as balustrades
with the height of 1000 mm made from glass panels to prevent anyone leaning
over and falling.
My design includes two staircases, the main being the spiral stair, and a fire
staircase in case of emergency. Both of these stairs include bannisters 1000mm
in height to prevent falling.
