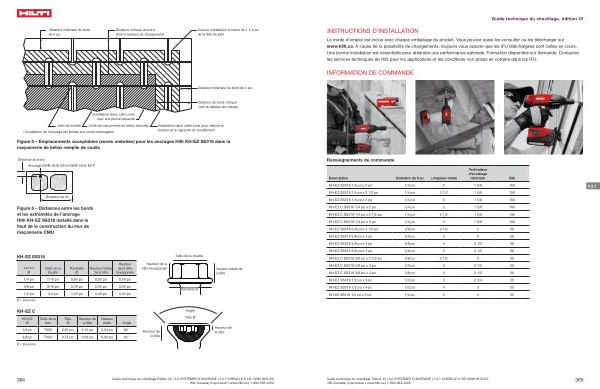

INSTRUCTIONS D ’ INSTALLATION
Guide technique du chevillage , édition 22
Le mode d ’ emploi est inclus avec chaque emballage du produit . Vous pouvez aussi les consulter ou les télécharger sur www . hilti . ca . À cause de la possibilité de changements , toujours vous assurer que les IFU téléchargées sont celles en cours . Une bonne installation est essentielle pour atteindre une performance optimale . Formation disponible sur demande . Contactez les services techniques de Hilti pour les applications et les conditions non prises en compte dans les IFU .
INFORMATION DE COMMANDE
Renseignements de commande
Description Diamètre du trou Longueur totale
Profondeur d ’ enrobage minimale
Qté KH-EZ SS316 1 / 4 po x 2 po 1 / 4 po 2 1 5 / 8 100 KH-EZ SS316 1 / 4 po x 2 1 / 2 po 1 / 4 po 2 1 / 2 1 5 / 8 100
3.3.7
KH-EZ SS316 1 / 4 po x 3 po
1 / 4 po
3
1 5 / 8
100
KH-EZ C SS316 1 / 4 po x 2 po
1 / 4 po
2
1 5 / 8
100
KH-EZ C SS316 1 / 4 po x 2 1 / 2 po
1 / 4 po
2 1 / 2
1 5 / 8
100
KH-EZ C SS316 1 / 4 po x 3 po
1 / 4 po
3
1 5 / 8
100
KH-EZ SS316 3 / 8 po x 2 1 / 2 po
3 / 8 po
2 1 / 2
2
50
KH-EZ SS316 3 / 8 po x 3 po
3 / 8 po
3
2
50
KH-EZ SS316 3 / 8 po x 4 po
3 / 8 po
4
2 1 / 2
50
KH-EZ SS316 3 / 8 po x 5 po
3 / 8 po
5
2 1 / 2
50
KH-EZ C SS316 3 / 8 po x 2 1 / 2 po
3 / 8 po
2 1 / 2
2
50
KH-EZ C SS316 3 / 8 po x 3 po
3 / 8 po
3
2 1 / 2
50
KH-EZ C SS316 3 / 8 po x 4 po
3 / 8 po
4
2 1 / 2
50
KH-EZ SS316 1 / 2 po x 3 po
1 / 2 po
3
2 1 / 4
25
KH-EZ SS316 1 / 2 po x 4 po
1 / 2 po
4
3
25
KH-EZ SS316 1 / 2 po x 5 po
1 / 2 po
5
3
25
Guide technique du chevillage Édition 22 | 3.0 SYSTÈMES D ’ ANCRAGE | 3.3.7 CHEVILLE À VIS KWIK HUS-EZ Hilti ( Canada ) Corporation | www . hilti . ca | 1-800-363-4458
365
