Modular Support Systems Technical Guide , Edition 1

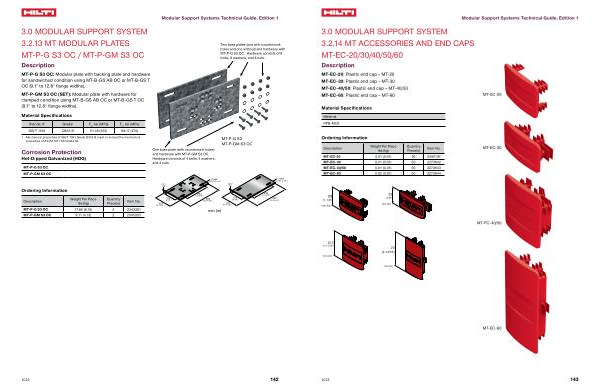

3.0 MODULAR SUPPORT SYSTEM 3.2.14 MT ACCESSORIES AND END CAPS MT-EC-20 / 30 / 40 / 50 / 60
Description
MT-EC-20 : Plastic end cap – MT-20 MT-EC-30 : Plastic end cap – MT-30 MT-EC-40 / 50 : Plastic end cap – MT-40 / 50 MT-EC-60 : Plastic end cap – MT-60
MT-EC-20
Material Specifications
Material PPB-MO2
Ordering Information
Description
Weight Per Piece lbs ( kg )
Quantity Piece ( s )
Item No .
MT-EC-20 0.01 ( 0.01 ) 50 2282197 MT-EC-30 0.01 ( 0.01 ) 50 2273642 MT-EC-40 / 50 0.01 ( 0.01 ) 50 2273643 MT-EC-60 0.02 ( 0.01 ) 50 2273644
MT-EC-30
��
������ “)
mm ( in )
��
���� “)
mm ( in )
MT-EC-40 / 50
����
�������� “)
mm ( in )
��
�������� “)
mm ( in )
MT-EC-60
2023
143
