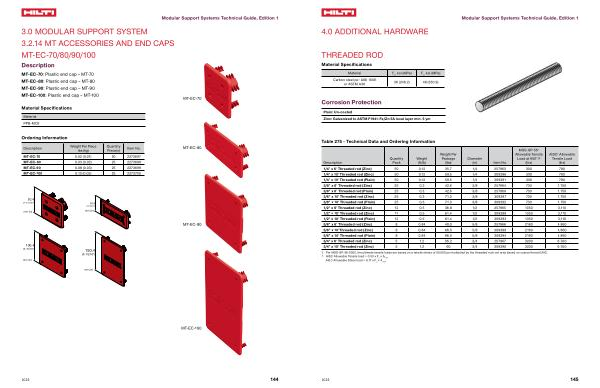

Modular Support Systems Technical Guide , Edition 1
3.0 MODULAR SUPPORT SYSTEM 3.2.14 MT ACCESSORIES AND END CAPS MT-EC-70 / 80 / 90 / 100
Description
MT-EC-70 : Plastic end cap – MT-70 MT-EC-80 : Plastic end cap – MT-80 MT-EC-90 : Plastic end cap – MT-90 MT-EC-100 : Plastic end cap – MT-100
MT-EC-70
Material Specifications
Material PPB-MO2
Ordering Information
Description
Weight Per Piece lbs ( kg )
Quantity Piece ( s )
Item No .
MT-EC-70 0.02 ( 0.01 ) 50 2273697 MT-EC-80 0.03 ( 0.02 ) 25 2273698 MT-EC-90 0.08 ( 0.03 ) 25 2273699 MT-EC-100 0.10 ( 0.05 ) 25 2273700
MT-EC-80
����
�������� “)
���� �������� “)
mm ( in ) mm ( in )
MT-EC-90
�����
�������� “)
�����
�������� “) mm ( in ) mm ( in )
MT-EC-100
2023
144
