Modular Support Systems Technical Guide , Edition 1

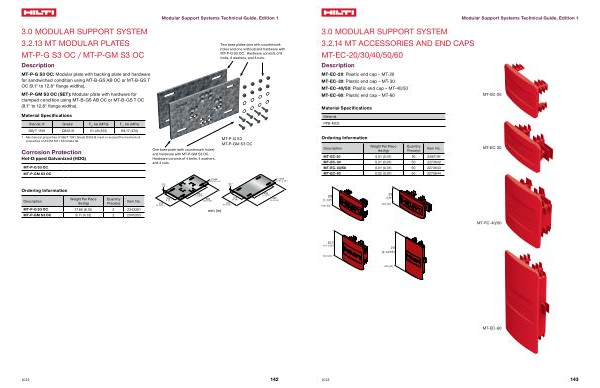

3.0 MODULAR SUPPORT SYSTEM 3.2.13 MT MODULAR PLATES MT-P-G S3 OC / MT-P-GM S3 OC
Description
Two base plates ( one with countersunk holes and one without ) and hardware with MT-P-G S3 OC . Hardware consists of 8 bolts , 8 washers , and 8 nuts .
MT-P-G S3 OC : Modular plate with backing plate and hardware for sandwiched condition using MT-B-GS AB OC or MT-B-GS T OC ( 9.1 " to 12.8 " flange widths ).
MT-P-GM S3 OC ( SET ): Modular plate with hardware for clamped condition using MT-B-GS AB OC or MT-B-GS T OC ( 9.1 " to 12.8 " flange widths ).
Material Specifications
Standard 1 Grade 1 F y , ksi ( MPa ) F u
, ksi ( MPa ) GB / T 1591 Q355 B 51.49 ( 355 ) 68.17 ( 470 )
1 . Mechanical properties of GB / T 1591 Grade Q355 B meet or exceed the mechanical properties of ASTM 1011 SS Grade 50 .
Corrosion Protection
Hot-Dipped Galvanized ( HDG )
MT-P-G S3 OC MT-P-GM S3 OC
Ordering Information
Description
Weight Per Piece lbs ( kg )
Quantity Piece ( s )
Item No .
MT-P-G S3 OC 17.86 ( 8.10 ) 2 2343281 MT-P-GM S3 OC 9.11 ( 4.13 ) 2 2345355
One base plate ( with countersunk holes ) and hardware with MT-P-GM S3 OC . Hardware consists of 4 bolts , 4 washers , and 4 nuts .
���� “) ��
��� �������� “)
��� ������ “)
��� �������� “)
��� ��������� “)
����� ������ “ x ����� “)
mm ( in )
MT-P-G S3 MT-P-GM S3 OC
���� “) ��
��� �������� “)
��� ������ “)
��� �������� “)
��� ��������� “)
����� ������ “ x ����� “)
2023
142
