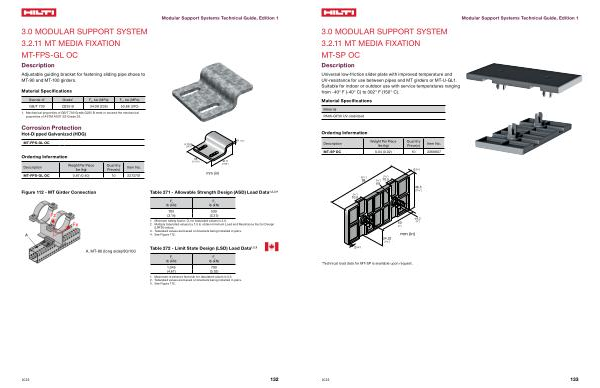

3.0 MODULAR SUPPORT SYSTEM 3.2.11 MT MEDIA FIXATION MT-SP OC
Description
Universal low-friction slider plate with improved temperature and UV-resistance for use between pipes and MT girders or MT-U-GL1 . Suitable for indoor or outdoor use with service temperatures ranging from -40 ° F ( -40 ° C ) to 302 ° F ( 150 ° C ).
Material Specifications
Material PA66-GF30 UV-stabilized
Modular Support Systems Technical Guide , Edition 1
Ordering Information
Description
Weight Per Piece lbs ( kg )
Quantity Piece ( s )
Item No . MT-SP OC 0.04 ( 0.02 ) 10 2368807
� �¼��
�7 ⁄ 16��
����
���7 ⁄ 8��
��
�5 ⁄ 16��
��
�7 ⁄ 16��
����
����
��15 ⁄ 16��
��
����
����� � �3 ⁄ 8��
�����
�15 ⁄ 16�� mm ( in )
� �1 ⁄ 16��
* Technical load data for MT-SP is available upon request .
2023
133
