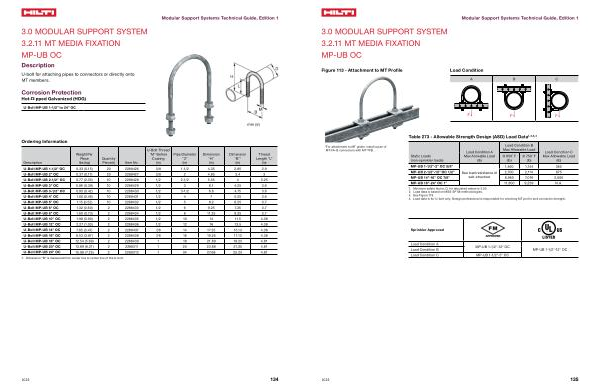

Modular Support Systems Technical Guide , Edition 1
3.0 MODULAR SUPPORT SYSTEM 3.2.11 MT MEDIA FIXATION MP-UB OC
Description
U-bolt for attaching pipes to connectors or directly onto MT members .
Corrosion Protection
Hot-Dipped Galvanized ( HDG )
U-Bolt MP-UB 1-1 / 2 " to 24 " OC mm ( in )
Ordering Information
Description
Weight Per Piece lbs ( kg )
Quantity Piece ( s ) Item No .
U-Bolt Thread " M " Before Coating ( in )
Pipe Diameter “ D ” ( in )
Dimension “ H ” ( in )
Dimension “ B ” 1 ( in )
U-Bolt MP-UB 1-1 / 2 " OC 0.33 ( 0.15 ) 20 2288426 3 / 8 1-1 / 2 4.35 2.85 2.9 U-Bolt MP-UB 2 " OC 0.37 ( 0.17 ) 20 2288427 3 / 8 2 4.85 3.4 3
Thread Length “ L ” ( in )
U-Bolt MP-UB 2-1 / 2 " OC 0.77 ( 0.35 ) 10 2288428 1 / 2 2-1 / 2 5.55 4 3.25 U-Bolt MP-UB 3 " OC 0.86 ( 0.39 ) 10 2288429 1 / 2 3 6.1 4.25 3.6 U-Bolt MP-UB 3-1 / 2 " OC 0.93 ( 0.42 ) 10 2288430 1 / 2 3-1 / 2 6.6 4.75 3.6 U-Bolt MP-UB 4 " OC 1.00 ( 0.46 ) 10 2288431 1 / 2 4 7 5.25 3.6 U-Bolt MP-UB 5 " OC 1.15 ( 0.52 ) 10 2288432 1 / 2 5 8.2 6.25 3.7 U-Bolt MP-UB 6 " OC 1.32 ( 0.60 ) 2 2288433 1 / 2 6 9.25 7.25 3.7 U-Bolt MP-UB 8 " OC 1.60 ( 0.73 ) 2 2288434 1 / 2 8 11.25 9.25 3.7 U-Bolt MP-UB 10 " OC 1.98 ( 0.90 ) 2 2288435 1 / 2 10 14 11.5 4.38 U-Bolt MP-UB 12 " OC 2.27 ( 1.03 ) 2 2288436 1 / 2 12 16 13.5 4.38 U-Bolt MP-UB 14 " OC 7.65 ( 3.47 ) 2 2288437 7 / 8 14 17.25 15.13 4.38 U-Bolt MP-UB 16 " OC 8.53 ( 3.87 ) 2 2288438 7 / 8 16 19.25 17.13 4.38 U-Bolt MP-UB 18 " OC 12.54 ( 5.69 ) 2 2288439 1 18 21.69 19.25 4.81 U-Bolt MP-UB 20 " OC 13.69 ( 6.21 ) 2 2288311 1 20 23.68 21.25 4.81 U-Bolt MP-UB 24 " OC 15.98 ( 7.25 ) 2 2288313 1 24 27.68 25.25 4.81 1 . Dimension “ B ” is measured from center line to center line of the U-bolt .
2023
134
