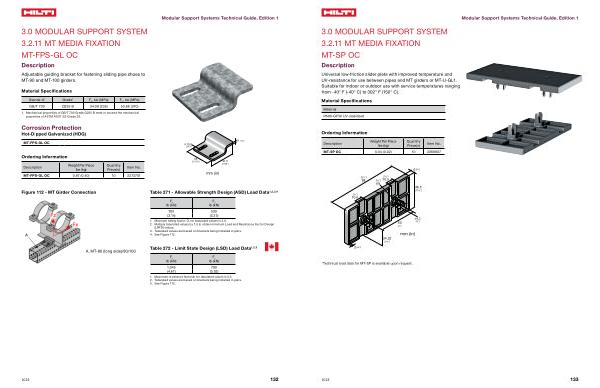

3.0 MODULAR SUPPORT SYSTEM 3.2.11 MT MEDIA FIXATION MT-FPS-GL OC
Description
Adjustable guiding bracket for fastening sliding pipe shoes to MT-90 and MT-100 girders .
Material Specifications
Standard 1 Grade 1 F y , ksi ( MPa ) F u
, ksi ( MPa ) GB / T 700 Q235 B 34.08 ( 235 ) 53.66 ( 370 )
1 . Mechanical properties of GB / T 700 Grade Q235 B meet or exceed the mechanical properties of ASTM A1011 SS Grade 33 .
Corrosion Protection
Hot-Dipped Galvanized ( HDG )
MT-FPS-GL OC
� ���� ����� “)
������ “)
Ordering Information
Description
Weight Per Piece lbs ( kg )
Quantity Piece ( s )
Item No . MT-FPS-GL OC 0.87 ( 0.40 ) 10 2273701
�� ������� “) mm ( in )
���� ������ “)
Figure 112 - MT Girder Connection
Table 271 - Allowable Strength Design ( ASD ) Load Data 1 , 2 , 3 , 4
F x lb ( kN )
F z lb ( kN )
705 |
530 |
( 3.14 ) |
( 2.36 ) |
1 . Minimum safety factor , Ω , for tabulated values is 3.0 . 2 . Multiply tabulated values by 1.5 to obtain minimum Load and Resistance Factor Design
( LRFD ) values . 3 . Tabulated values are based on brackets being installed in pairs . 4 . See Figure 112 .
A . MT-80 ( long side )/ 90 / 100
Table 272 - Limit State Design ( LSD ) Load Data 1 , 2 , 3
F x lb ( kN )
F z lb ( kN )
1,045 |
790 |
( 4.67 ) |
( 3.52 ) |
1 . Maximum resistance factor , Φ , for tabulated values is 0.5 . 2 . Tabulated values are based on brackets being installed in pairs . 3 . See Figure 112 .
