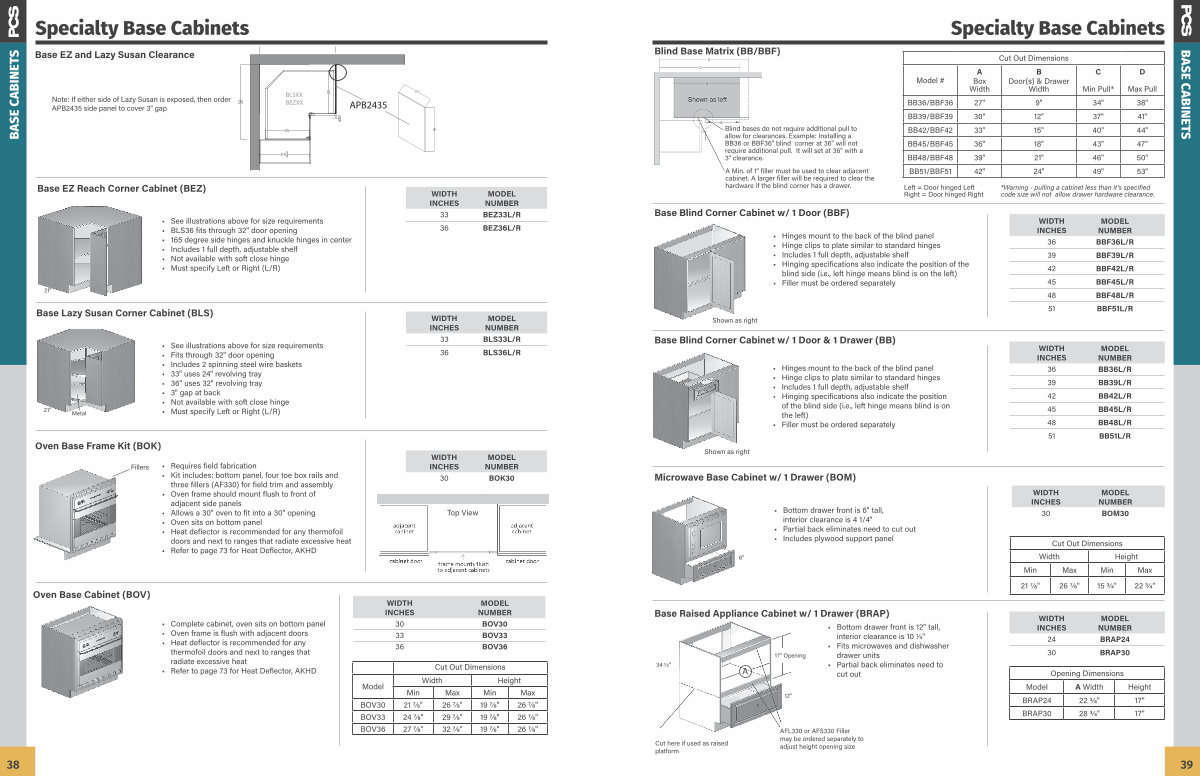

Blind Base Matrix( BB / BBF)
Blind bases do not require additional pull to allow for clearances. Example: Installing a BB36 or BBF36 " blind corner at 36 " will not require additional pull. It will set at 36 " with a 3 " clearance.
A Min. of 1 " filler must be used to clear adjacent cabinet. A larger filler will be required to clear the hardware if the blind corner has a drawer.
Model #
A Box Width
Cut Out Dimensions
B Door( s) & Drawer Width
C Min Pull *
D
Max Pull BB36 / BBF36 27 " 9 " 34 " 38 " BB39 / BBF39 30 " 12 " 37 " 41 " BB42 / BBF42 33 " 15 " 40 " 44 " BB45 / BBF45 36 " 18 " 43 " 47 " BB48 / BBF48 39 " 21 " 46 " 50 " BB51 / BBF51 42 " 24 " 49 " 53 "
Left = Door hinged Left Right = Door hinged Right
Specialty Base Cabinets
* Warning- pulling a cabinet less than it’ s specified code size will not allow drawer hardware clearance.
BASE CABINETS
Base Blind Corner Cabinet w / 1 Door( BBF)
Shown as right
• Hinges mount to the back of the blind panel
• Hinge clips to plate similar to standard hinges
• Includes 1 full depth, adjustable shelf
• Hinging specifications also indicate the position of the blind side( i. e., left hinge means blind is on the left)
• Filler must be ordered separately
Base Blind Corner Cabinet w / 1 Door & 1 Drawer( BB)
Shown as right
• Hinges mount to the back of the blind panel
• Hinge clips to plate similar to standard hinges
• Includes 1 full depth, adjustable shelf
• Hinging specifications also indicate the position of the blind side( i. e., left hinge means blind is on the left)
• Filler must be ordered separately
WIDTH INCHES
36 39 42 45 48 51
WIDTH INCHES
36 39 42 45 48 51
MODEL NUMBER
BBF36L / R BBF39L / R BBF42L / R BBF45L / R BBF48L / R BBF51L / R
MODEL NUMBER
BB36L / R BB39L / R BB42L / R BB45L / R BB48L / R BB51L / R
Microwave Base Cabinet w / 1 Drawer( BOM)
6 "
• Bottom drawer front is 6 " tall, interior clearance is 4 1 / 4 "
• Partial back eliminates need to cut out
• Includes plywood support panel
WIDTH INCHES
30
Width
MODEL NUMBER
BOM30
Cut Out Dimensions
Height Min Max Min Max 21 7 / 8 " 26 7 / 8 " 15 3 / 4 " 22 3 / 4 "
Base Raised Appliance Cabinet w / 1 Drawer( BRAP)
34 1 / 2 "
A
17 " Opening
12 "
• Bottom drawer front is 12 " tall, interior clearance is 10 1 / 4 "
• Fits microwaves and dishwasher drawer units
• Partial back eliminates need to cut out
WIDTH INCHES
24 30
MODEL NUMBER
BRAP24 BRAP30
Opening Dimensions Model A Width Height BRAP24 22 3 / 4 " 17 " BRAP30 28 3 / 4 " 17 "
Cut here if used as raised platform
AFL330 or AFS330 Filler may be ordered separately to adjust height opening size
39
