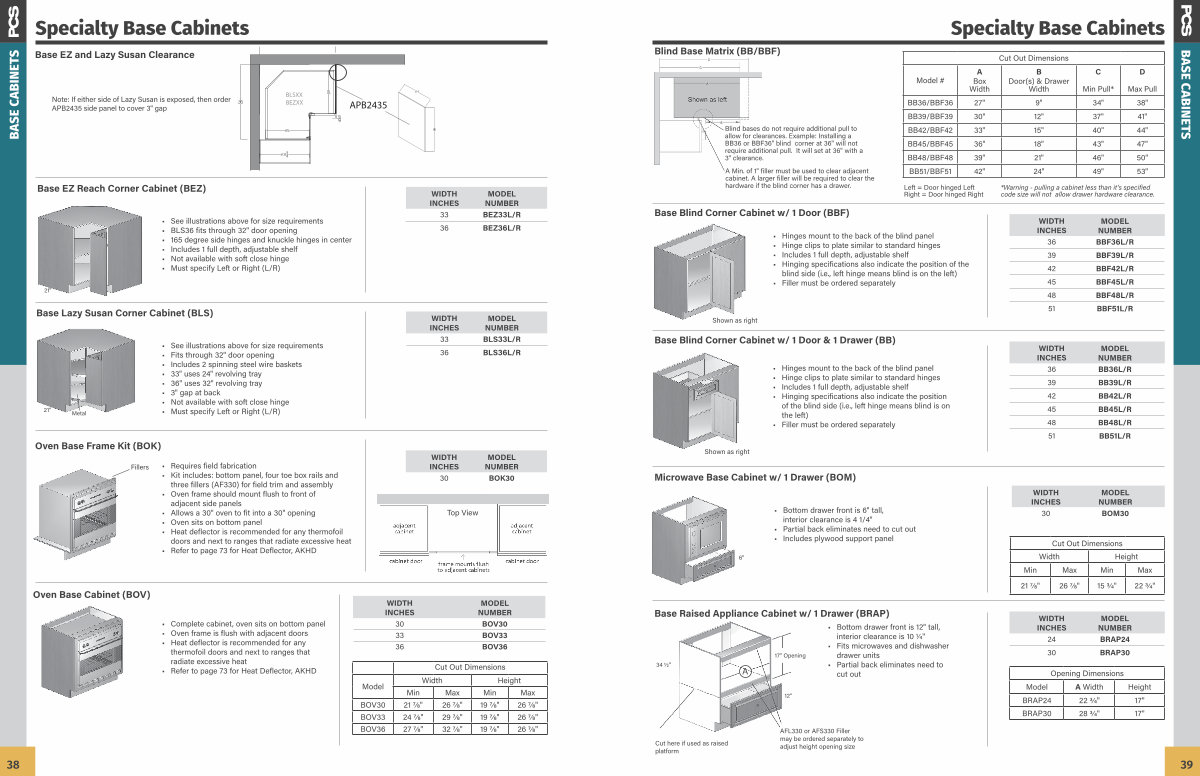

Specialty Base Cabinets |
|
|
BASE CABINETS |
|
|
|
Base EZ and Lazy Susan Clearance
Note: If either side of Lazy Susan is exposed, then order APB2435 side panel to cover 3 " gap
|
|
|
BLSXX BEZXX |
APB2435 |
Base EZ Reach Corner Cabinet( BEZ)
• See illustrations above for size requirements
• BLS36 fits through 32 " door opening
• 165 degree side hinges and knuckle hinges in center
• Includes 1 full depth, adjustable shelf
• Not available with soft close hinge
• Must specify Left or Right( L / R)
WIDTH INCHES
33 36
MODEL NUMBER
BEZ33L / R BEZ36L / R
21 "
Base Lazy Susan Corner Cabinet( BLS)
21 " Metal
• See illustrations above for size requirements
• Fits through 32 " door opening
• Includes 2 spinning steel wire baskets
• 33 " uses 24 " revolving tray
• 36 " uses 32 " revolving tray
• 3 " gap at back
• Not available with soft close hinge
• Must specify Left or Right( L / R)
WIDTH INCHES
33 36
MODEL NUMBER
BLS33L / R BLS36L / R
Oven Base Frame Kit( BOK)
Fillers
• Requires field fabrication
• Kit includes: bottom panel, four toe box rails and three fillers( AF330) for field trim and assembly
• Oven frame should mount flush to front of adjacent side panels
• Allows a 30 " oven to fit into a 30 " opening
• Oven sits on bottom panel
• Heat deflector is recommended for any thermofoil doors and next to ranges that radiate excessive heat
• Refer to page 73 for Heat Deflector, AKHD
WIDTH INCHES
30
Top View
MODEL NUMBER
BOK30
Oven Base Cabinet( BOV)
• Complete cabinet, oven sits on bottom panel
• Oven frame is flush with adjacent doors
• Heat deflector is recommended for any thermofoil doors and next to ranges that radiate excessive heat
• Refer to page 73 for Heat Deflector, AKHD
Model
WIDTH INCHES
30 33 36
Width
MODEL NUMBER
BOV30 BOV33 BOV36
Cut Out Dimensions Height
Min Max Min Max BOV30 21 7 / 8 " 26 7 / 8 " 19 7 / 8 " 26 7 / 8 " BOV33 24 7 / 8 " 29 7 / 8 " 19 7 / 8 " 26 7 / 8 " BOV36 27 7 / 8 " 32 7 / 8 " 19 7 / 8 " 26 7 / 8 "
38
