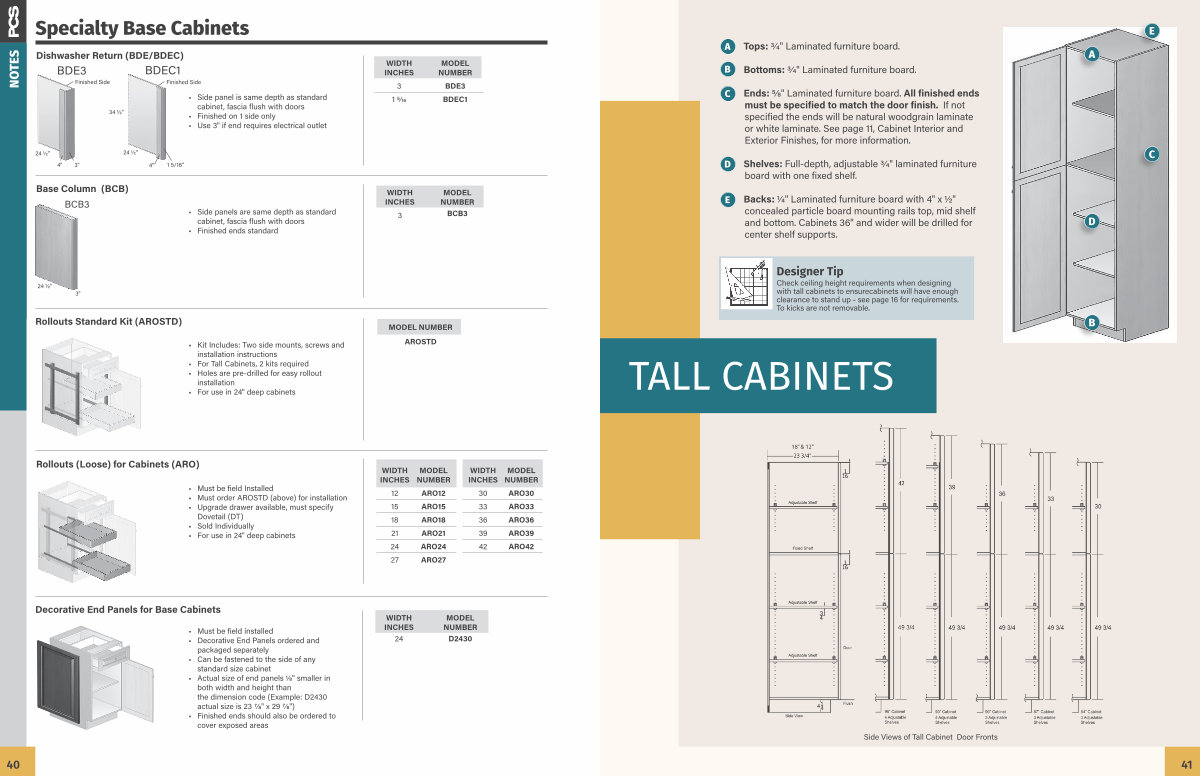

Specialty Base Cabinets |
|
|
TALL CABINETS NOTES |
Dishwasher Return( BDE / BDEC)
BDE3 BDEC1
Finished Side
34 1 / 2 "
Finished Side
• Side panel is same depth as standard cabinet, fascia flush with doors
• Finished on 1 side only
• Use 3 " if end requires electrical outlet
|
WIDTH INCHES
3
1 5 / 16
|
MODEL NUMBER
BDE3
BDEC1
|
24 1 / 2 " 24 1 / 2 "
4 " 3 " 4 " 1 5 / 16 "
|
Base Column( BCB)
BCB3
|
• Side panels are same depth as standard cabinet, fascia flush with doors
• Finished ends standard
|
WIDTH INCHES
3
|
MODEL NUMBER
BCB3
|
24 1 / 2 " 3 "
Rollouts Standard Kit( AROSTD)
• Kit Includes: Two side mounts, screws and installation instructions
• For Tall Cabinets, 2 kits required
• Holes are pre-drilled for easy rollout installation
• For use in 24 " deep cabinets
MODEL NUMBER AROSTD
Rollouts( Loose) for Cabinets( ARO)
• Must be field Installed
• Must order AROSTD( above) for installation
• Upgrade drawer available, must specify Dovetail( DT)
• Sold Individually
• For use in 24 " deep cabinets
WIDTH INCHES
12 15 18 21 24 27
MODEL NUMBER
ARO12 ARO15 ARO18 ARO21 ARO24 ARO27
WIDTH INCHES
30 33 36 39 42
MODEL NUMBER
ARO30 ARO33 ARO36 ARO39 ARO42
Decorative End Panels for Base Cabinets
• Must be field installed
• Decorative End Panels ordered and packaged separately
• Can be fastened to the side of any standard size cabinet
• Actual size of end panels 1 / 8 " smaller in both width and height than the dimension code( Example: D2430 actual size is 23 7 / 8 " x 29 7 / 8 ")
• Finished ends should also be ordered to cover exposed areas
WIDTH INCHES
24
MODEL NUMBER
D2430
