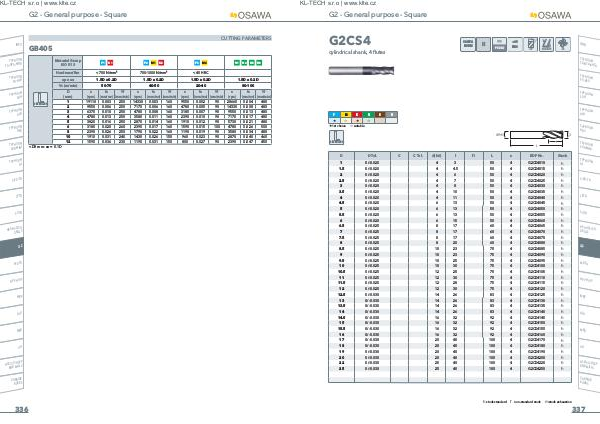

G2 - General purpose - Square
G2CS4
OSAWA
NORM
<45
HRC
INFO
cylindrical shank, 4 flutes
TYPHOO
N
TA-HTA-4
HTA
TYPHOO
N
PU-HPU
TYPHOO
N
SUH
P
M
K
N
S
TYPHOO
N
ALH
H
+
,
+
,
+ 1st choice , suitable
TYPHOO
N
HRC
SIDE MILLING
TYPHOO
N
SUH MIN
I
D D Tol. d(h6) l L z EDP No. Stock
1 0/-0.020
C
C Tol.
4 3
l1
50 4 G2CS4010 h
1.5 0/-0.020 4 4.5 50 4 G2CS4015 h
2 0/-0.020 4 6 50 4 G2CS4020 h
2.5 0/-0.020 4 7 50 4 G2CS4025 h
3 0/-0.020 4 8 50 4 G2CS4030 h
3.5 0/-0.020 4 10 50 4 G2CS4035 h
4 0/-0.020 4 11 50 4 G2CS4040 h
4.5 0/-0.020 6 13 50 4 G2CS4045 h
5 0/-0.020 6 13 50 4 G2CS4050 h
5.5 0/-0.020 6 13 50 4 G2CS4055 h
6 0/-0.020 6 15 50 4 G2CS4060 h
6.5 0/-0.025 8 17 60 4 G2CS4065 h
7 0/-0.025 8 17 60 4 G2CS4070 h
7.5 0/-0.025 8 17 60 4 G2CS4075 h
8 0/-0.025 8 20 60 4 G2CS4080 h
8.5 0/-0.025 10 23 75 4 G2CS4085 h
9 0/-0.025 10 23 75 4 G2CS4090 h
9.5 0/-0.025 10 25 75 4 G2CS4095 h
10 0/-0.025 10 30 75 4 G2CS4100 h
10.5 0/-0.025 12 25 75 4 G2CS4105 h
11 0/-0.025 12 30 75 4 G2CS4110 h
11.5 0/-0.025 12 28 75 4 G2CS4115 h
12 0/-0.025 12 30 75 4 G2CS4120 h
12.5 0/-0.030 14 26 83 4 G2CS4125 h
13 0/-0.030 14 26 83 4 G2CS4130 h
13.5 0/-0.030 14 26 83 4 G2CS4135 h
14 0/-0.030 14 26 83 4 G2CS4140 h
14.5 0/-0.030 16 32 92 4 G2CS4145 h
15 0/-0.030 16 32 92 4 G2CS4150 h
15.5 0/-0.030 16 32 92 4 G2CS4155 h
16 0/-0.030 16 32 92 4 G2CS4160 h
17 0/-0.030 20 40 100 4 G2CS4170 h
18 0/-0.030 20 40 100 4 G2CS4180 h
19 0/-0.030 20 40 100 4 G2CS4190 h
20 0/-0.030 20 40 100 4 G2CS4200 h
22 0/-0.030 25 40 100 4 G2CS4220 h
25 0/-0.030 25 40 100 4 G2CS4250 h
TYPHOO
N
HL
C-SD-TA
LFTA
SUTA
HSS-HSS
/CO
DRILLS
G2
MDTA
HF VH/U
P
MEF
ALU
MEX
UH
HSS/CO
-HSSP
END MIL
LS
CARBIDE
BURRS
h stock standard
f non-standard stock
m stock exhaustion
